Student Room Furniture Layout And Joinery Details Drawing Scale 1 50

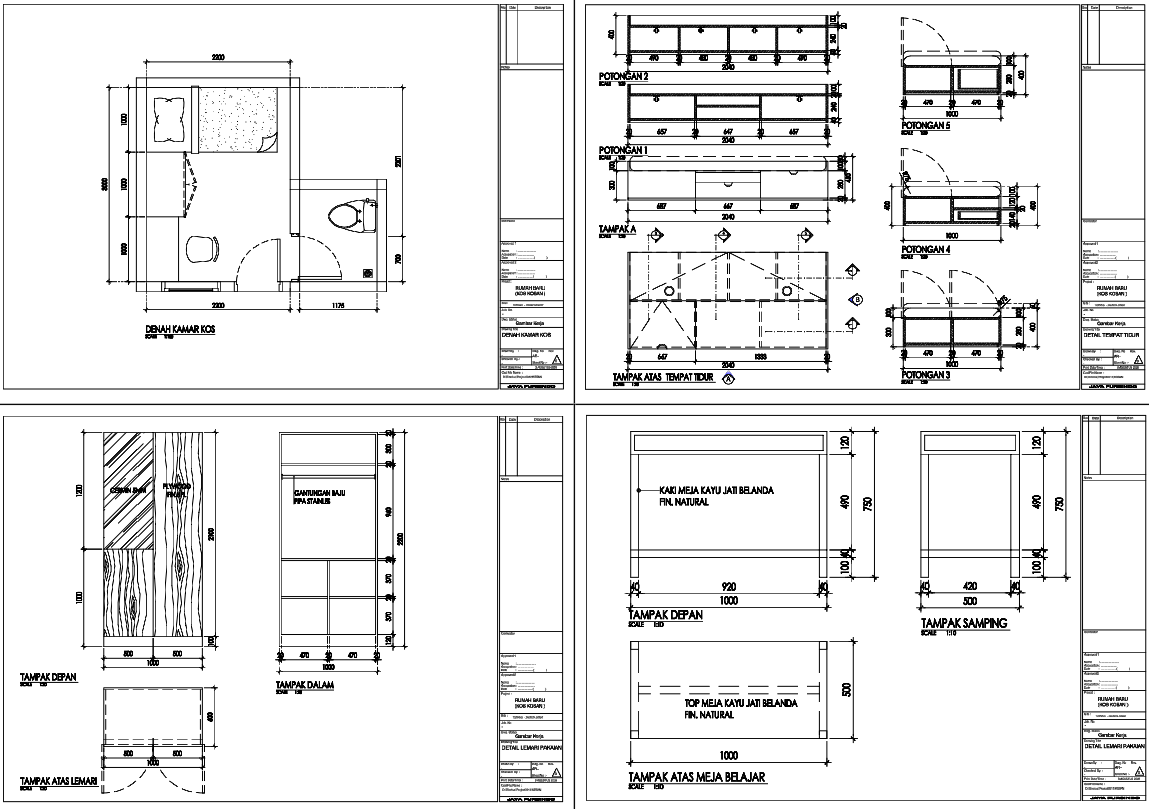

This AutoCAD DWG file contains a complete student room layout with detailed joinery drawings prepared for compact residential use. The drawing includes a bedroom plan measuring approximately 2200 x 3000 mm with a clearly arranged bed, study table, wardrobe, and attached toilet layout for efficient space utilisation. Furniture details cover a single bed with storage drawers, a study table with shelving, and a wardrobe unit designed with functional internal divisions. Bed dimensions include a sleeping area width of around 1000 mm and overall furniture modules aligned within the room footprint. The toilet layout is shown with a WC wash basin and a clear door swing for smooth circulation. The DWG also provides detailed furniture elevations, sections, and top views, including bed sections, Potongan 1 to 5 wardrobe front and internal views, and a study table. Joinery specifications highlight natural wood finishes such as jati Belanda wood for table legs and table tops with accurate thickness and height measurement, like 750 mm working height, 1000 mm table length, and 500 mm depth. Wardrobe internal shelves, drawers, and door swing clearances are fully dimensioned for execution.
