Residential Apartment First Floor Layout With Central Courtyard

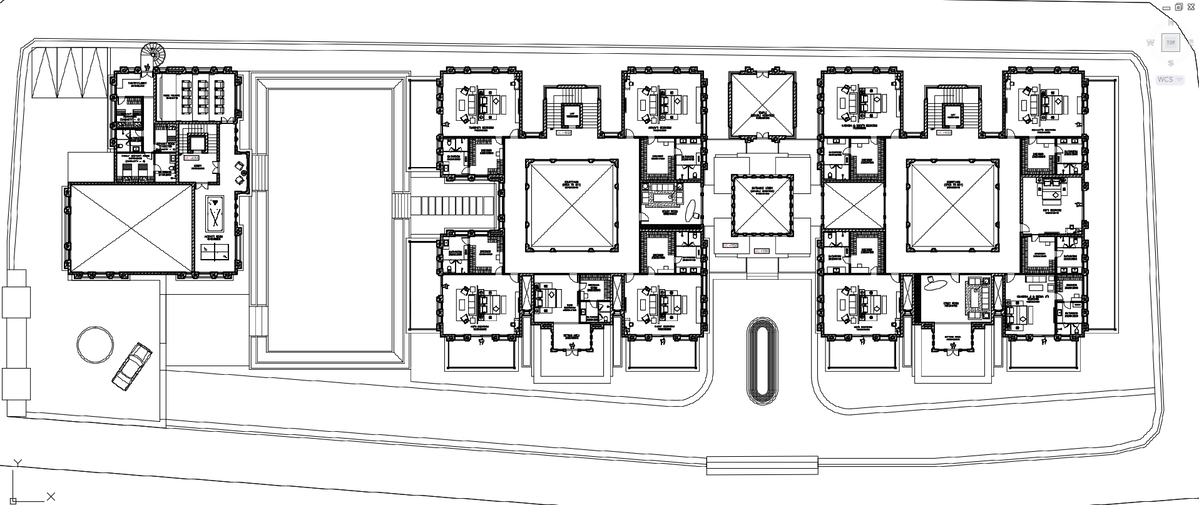

This AutoCAD DWG file showcases a detailed first-floor residential layout designed for an elongated site, featuring multiple apartment units encircling internal courtyards. The drawing clearly shows the site boundary and road edge. It also includes pathways for internal movement. There are landscaped open areas and designated drop-off zones. Each apartment unit is carefully planned with living, dining areas, bedrooms, toilets, and balconies connected through common corridors and stair cores. The design includes central courtyards to provide light ventilation and visual relief, ensuring proper setbacks and movement.
