Swimming Pool Plan 7500x4400mm with Pump Room and Drain Detail

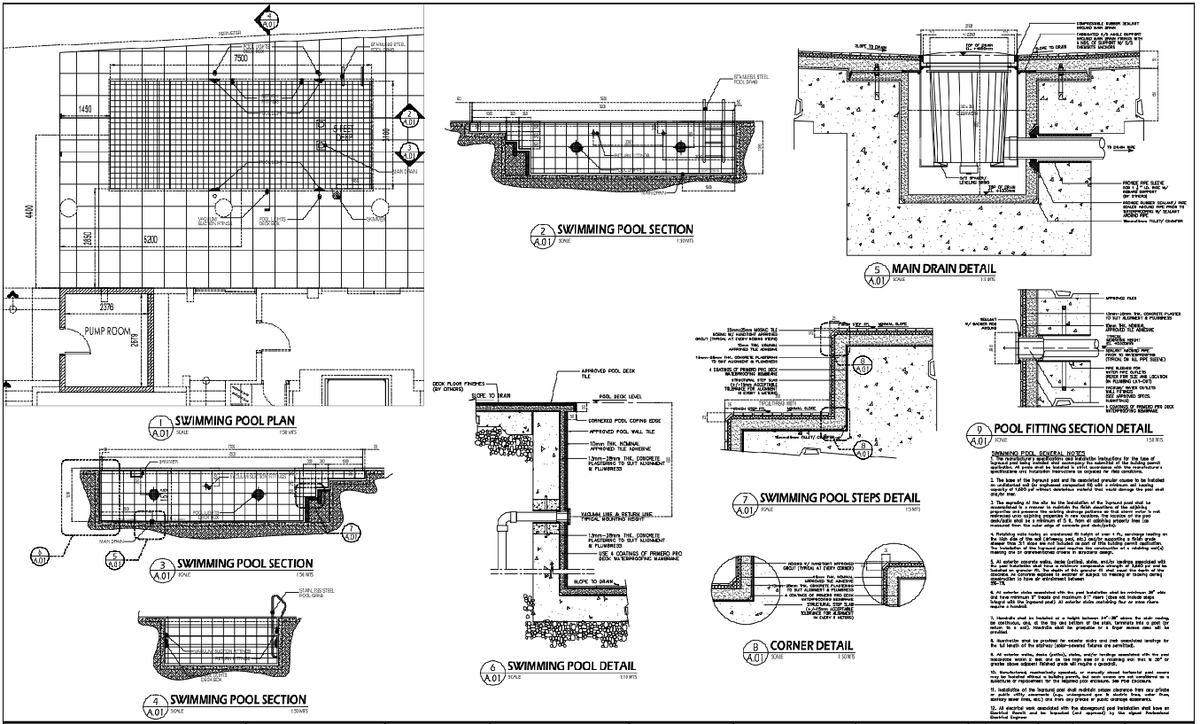

This AutoCAD drawing presents a complete Swimming Pool Plan with overall dimensions 7500 mm by 4400 mm and an integrated pump room layout measuring approximately 2375 mm by 2670 mm. The plan shows tiled deck layout, pool inlet and outlet positions, vacuum line, main drain, and skimmer locations with detailed grid marking and structural offsets. Multiple Swimming Pool Section views illustrate a stepped profile, reinforced concrete shell, steel rod reinforcement, compacted base, and sloped floor to drain system. Dimensions such as 1450 mm, 5200 mm, and sectional depths are clearly marked for construction accuracy. The drawing also includes Main Drain Detail, Pool Fitting Section Detail, Swimming Pool Steps Detail, Corner Detail, and Swimming Pool Detail at scales 1 is to 50 and 1 is to 25. Technical notes specify waterproofing layers, concrete thickness, pipe sleeve installation, and proper slope to drain coordination.
