Roof Louver Detail Elevation 1625mm Module with Section and Level Plan

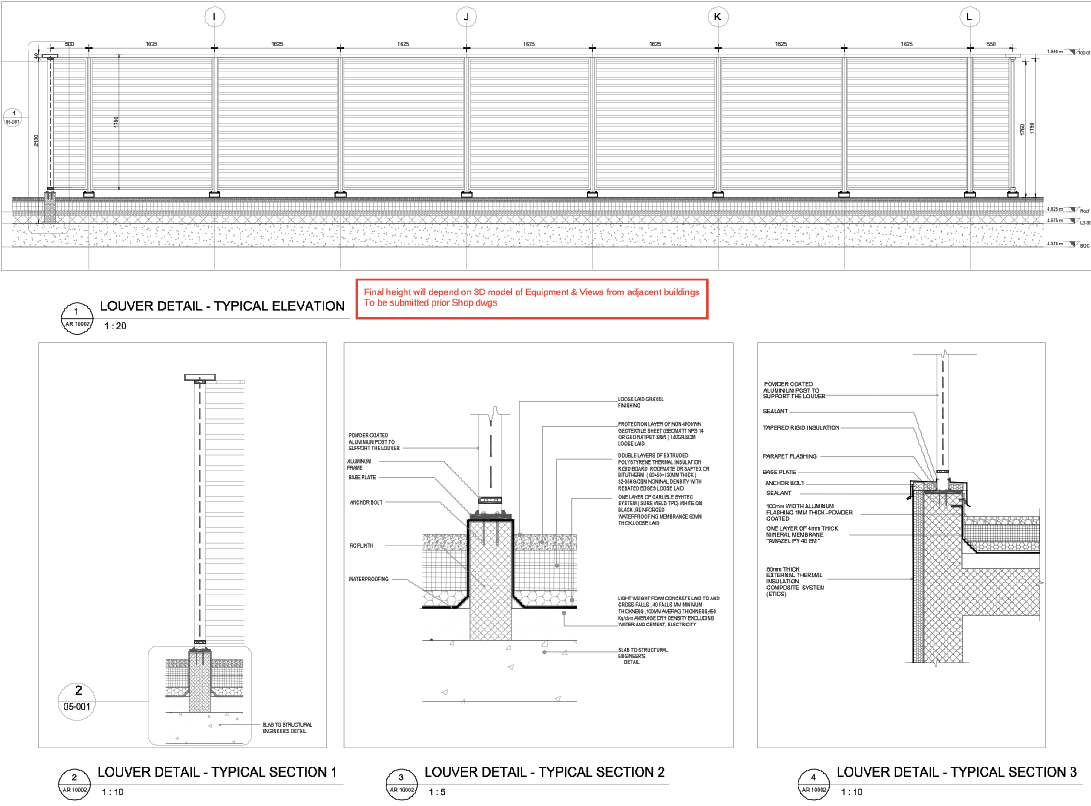

This AutoCAD drawing presents a comprehensive Roof Louver Detail with typical elevation showing repeated 1625 mm module spacing across grids I to L and overall height reference 7256 mm to the top of the edge. The elevation highlights 500 mm and 550 mm end offsets, 1750 mm and 1790 mm vertical dimensions, and BOC level at 4.375 m with roof level at 4.825 m. The louver system is supported on powder-coated aluminium posts fixed with a base plate and anchor bolts over an RC plinth and waterproofing layers. All dimensions are in millimetres and levels in meters, ensuring precise coordination with structural and roof slab details. This Roof Louver Detail AutoCAD drawing also includes Typical Section 1 at scale 1 is to 10, Typical Section 2 at scale 1 is to 5, and Typical Section 3 at scale 1 is to 10. Construction layers specify a 4 mm mineral membrane, an 80 mm external thermal insulation composite system, a 130 mm extruded polystyrene insulation, a geotextile sheet 140 g/sqm, lightweight foam concrete 40 mm minimum to 100 mm average thickness, tapered rigid insulation, and parapet flashing.
