Geocells Tank 2100x15000 GRP Pipe Bedding Detail DWG Drawing

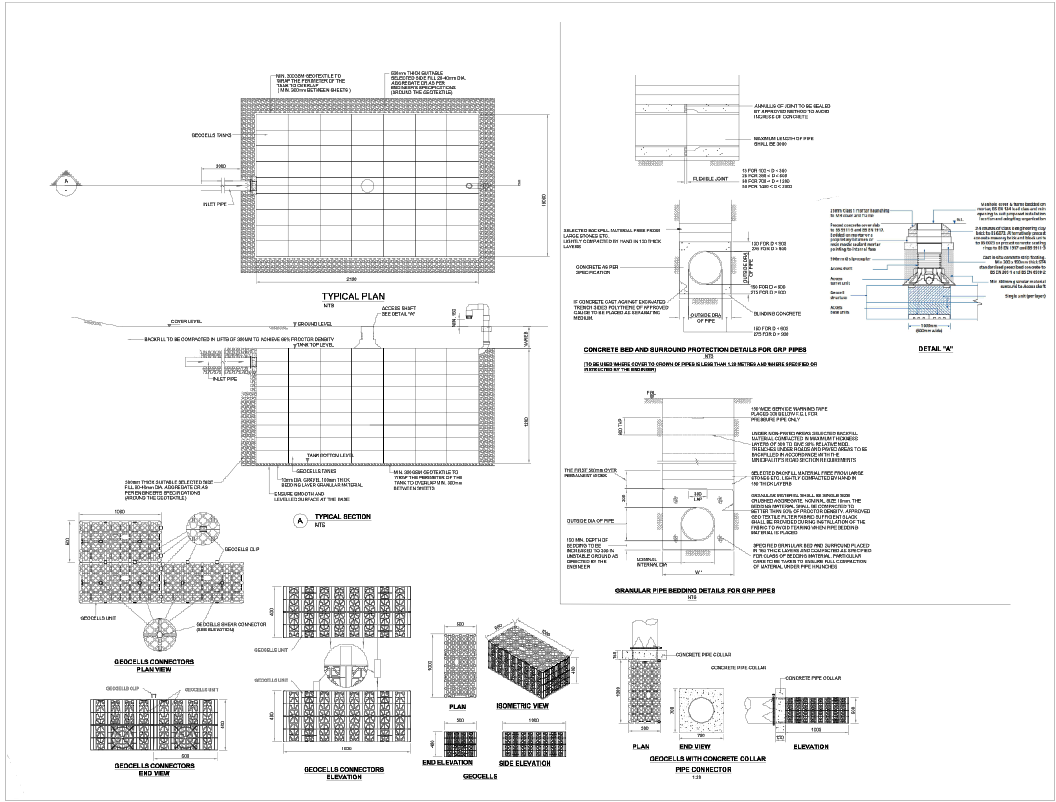

This AutoCAD DWG presents Geocells Tank 2100x15000 GRP Pipe Bedding Detail for the proposed storm water infrastructure at Hotel Central 03 Shura Program 07. The typical plan shows a 2100 mm tank width with 3000 mm geocells modules and an inlet pipe connection, wrapped in a minimum 300gsm geotextile with 300 mm overlap between sheets. The section illustrates a 500 mm thick selected side fill 20 to 40 mm aggregate around the geotextile, a 100 mm thick 10 mm gravel bedding layer, and compacted backfill in 300 mm lifts.
