Bridge Reinforcement Plant As Built Drawing DWG Construction Plan

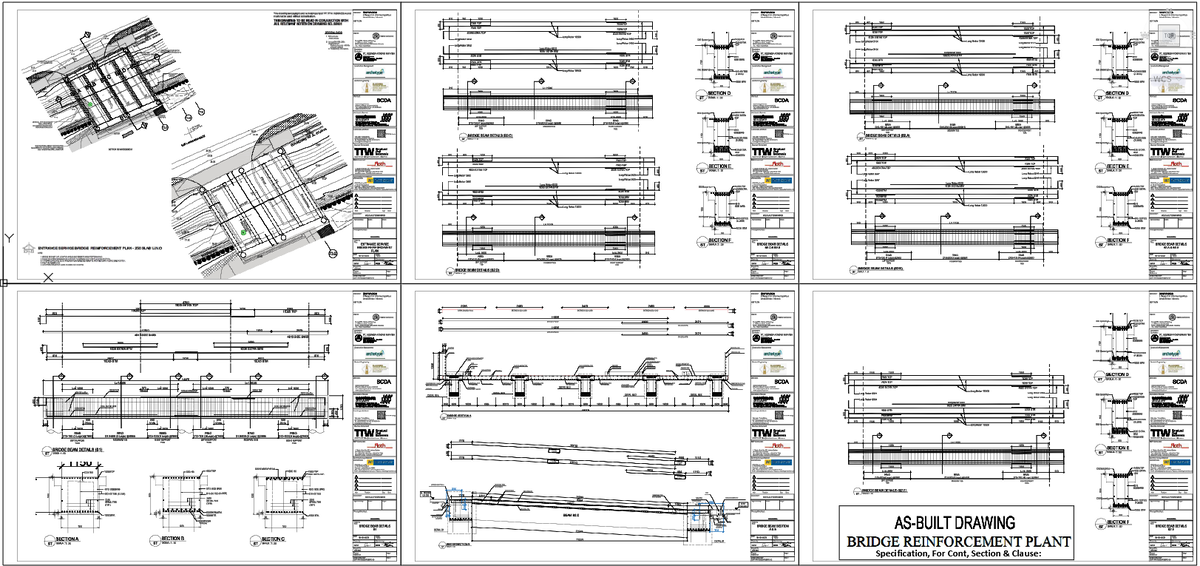

This AutoCAD DWG presents the Bridge Reinforcement Plant As Built Drawing DWG prepared for construction reference and specification compliance. The sheet includes a detailed Entrance Service Bridge Reinforcement Plan 250 kN UDL with beam alignment, reinforcement cage layout, and foundation interface coordinates. Longitudinal beam lengths up to 12000 mm and cross beam spans with dimension strings such as 3000 mm, 2400 mm, 1800 mm, and 1200 mm are clearly indicated. The drawing provides bridge beam details with top and bottom reinforcement bars, stirrup spacing, anchorage lengths, lap splice zones, and concrete cover notes as per the specification for Cont Section and Clause.
