Briclane Apartments Floor Plans 88x113 FT Residential DWG files

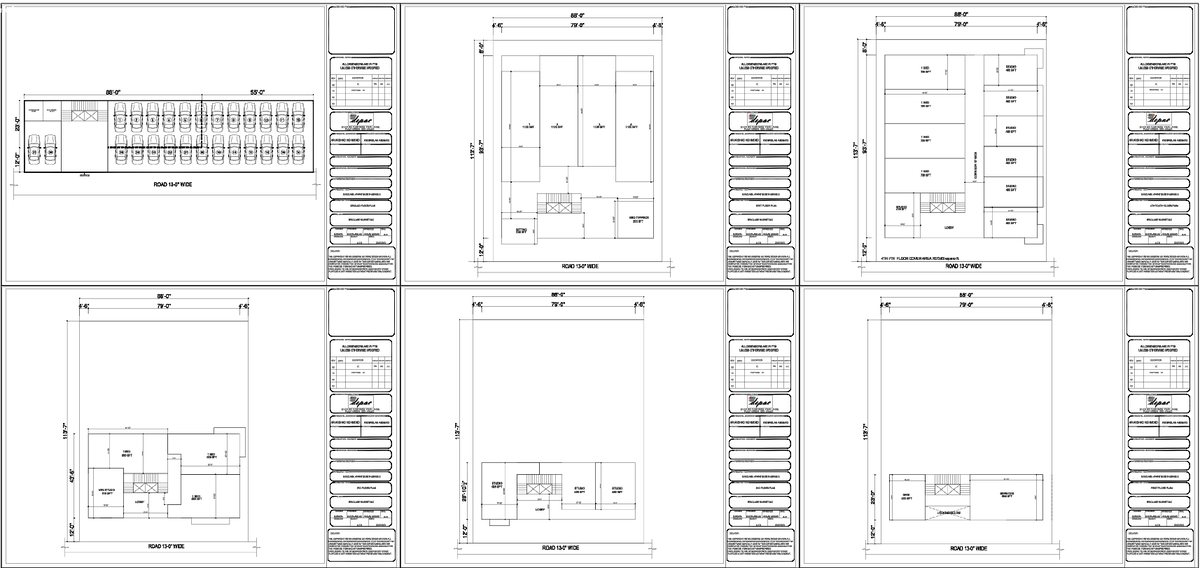

This AutoCAD DWG presents Briclane Apartments Floor Plans 88x113 FT DWG designed on a plot measuring 88 ft 0 in frontage and 113 ft 7 in depth with Road 13 ft 0 in wide access. The sheet includes the Ground Floor Plan featuring parking layout, guard room 92 SFT, electric generator room 92 SFT, and entrance circulation. Typical residential floors from 2nd to 7th show studio units 480 SFT, 479 SFT, and 628 SFT, one-bed units 730 SFT and 800 SFT, and a mini studio 510 SFT arranged along a 10 ft wide corridor with lobby and stair core. The 4th to 7th floor cover area is noted as 7673.83 square ft with balanced unit distribution.
