Senior Citizens Centre 30000 Sqft G Plus 1 AutoCAD DWG PlanS

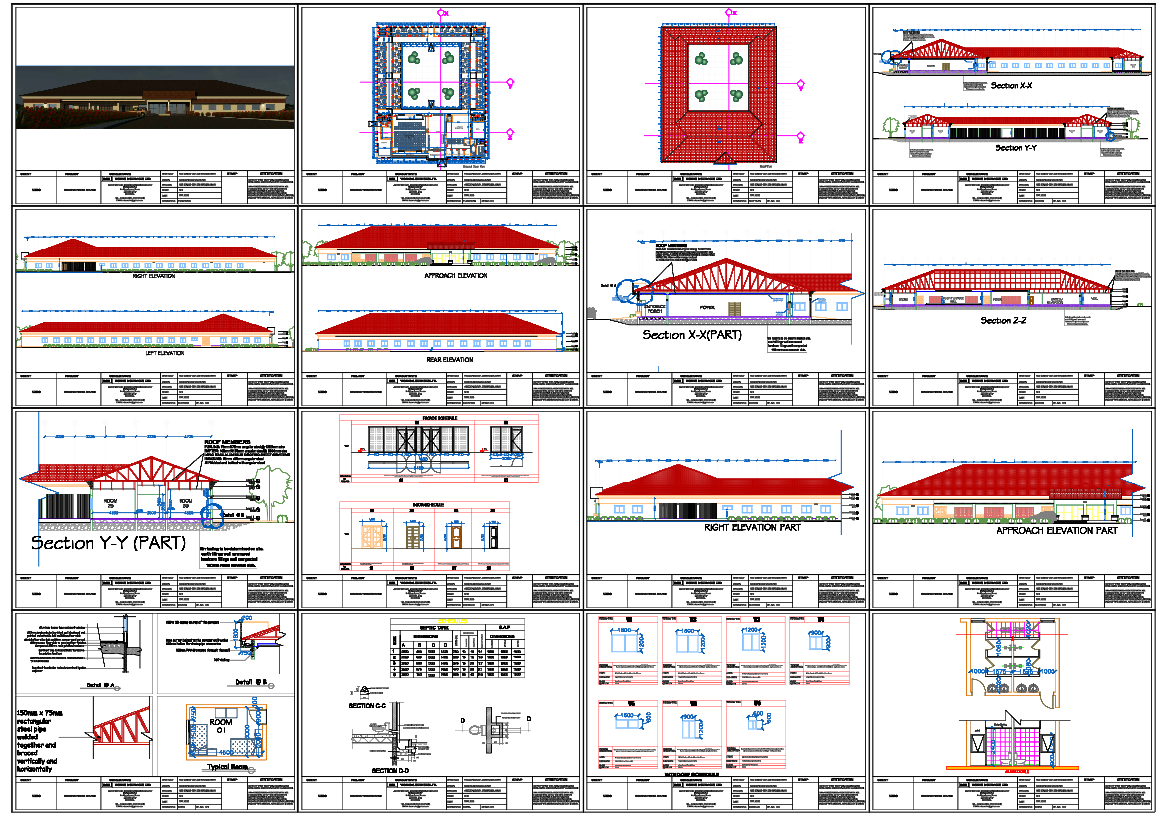

The 30000 Sqft Senior Citizens Centre G Plus 1 AutoCAD DWG Plan presents a comprehensive architectural drawing set featuring detailed floor plans, roof plan, site layout, and clearly marked sections including Section X X, Section Y Y, and Section Z Z as illustrated in the image. The drawing package includes front elevation, rear elevation, right elevation, left elevation, and approach elevation with precise dimensions and level markings. Structural truss details, sectional cut views, staircase sections, toilet layout plans, door and window detailing, typical room layout, and construction joinery details are carefully drafted to meet professional standards. The roof structure layout with slope design, column positioning, wall thickness, and foundation detailing is clearly represented. This 30000 sq ft Senior Citizens Centre G Plus 1 AutoCAD DWG Plan reflects institutional design focused on accessibility, spatial efficiency, ventilation, and structural clarity, making it suitable for elderly care and community facility development projects.
