Steel Beam Column Connection Elevation Section Detail Drawing

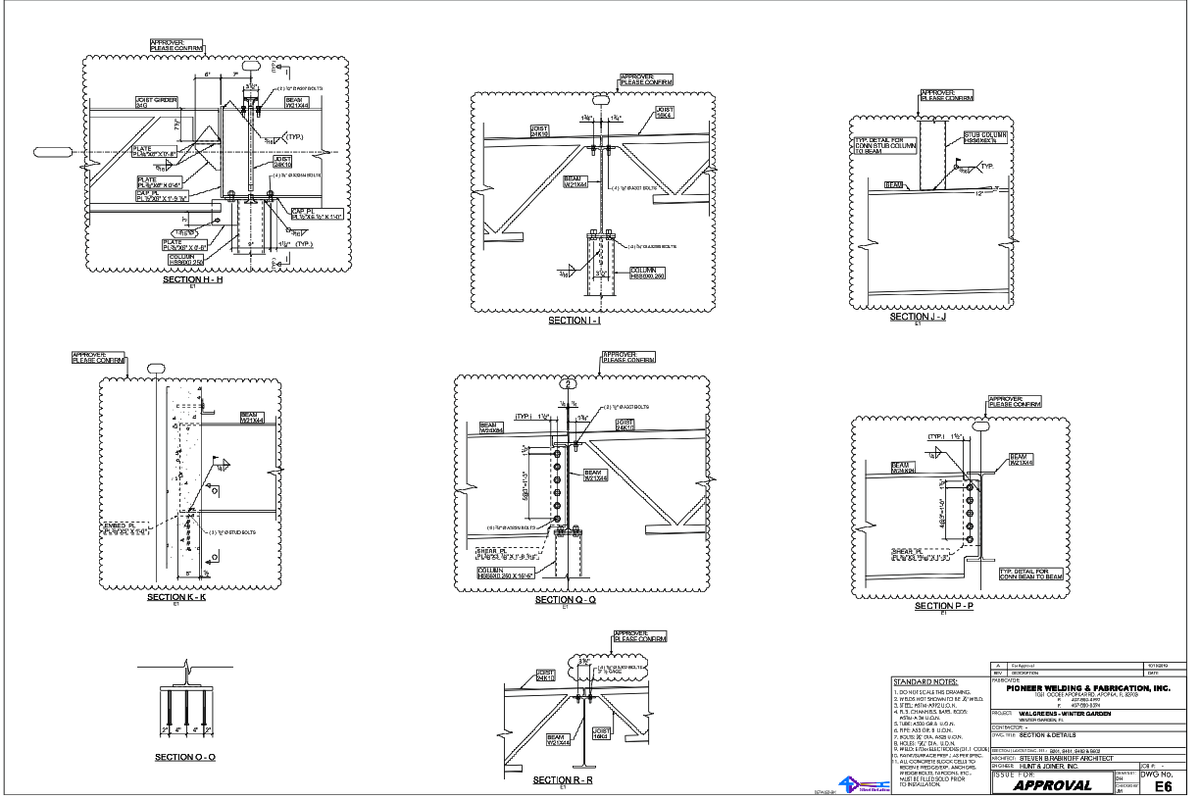

This steel beam column connection elevation section detail drawing presents multiple structural connection details used in steel frame construction and architectural structural coordination. The drawing includes several sectional views, such as section H H, section I I, section J J, section K K, section O O, section P P, section Q Q, and section R R, that illustrate different beam-to-column and beam-to-beam connection conditions. structure members shown in the drawing include steel beams such as W21x44 and W24x84, joists including 24K10 and 16K4, and steel columns such as HSS6x0.250 and HSS6x6x1 4. The details also include connection plates like PL3 8x6, PL3 4x6, PL1 2x8, and embed plates used for structural anchoring and support.
