Residential Room Layout Plan With 7660mm Width and 6000mm Depth DWG

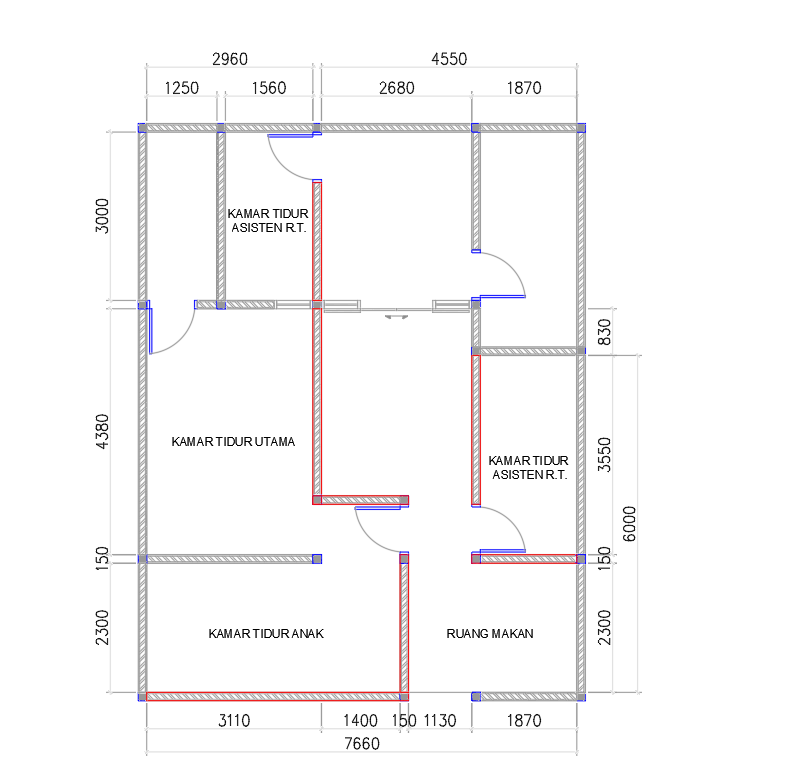

Residential room layout plan presenting a detailed architectural floor arrangement with overall building dimensions of approximately 7660 mm width and 6000 mm depth. The drawing illustrates a well-organised interior layout including Kamar Tidur Utama or master bedroom, Kamar Tidur Anak or children's bedroom, two Kamar Tidur Asisten RT or assistant bedrooms, and a Ruang Makan or dining room area. The layout clearly defines internal wall partitions, door swing directions, and circulation paths between rooms. Dimension references indicate key structural measurements, including 2960 mm and 4550 mm sectional wall spacing at the upper side and detailed horizontal divisions such as 3110 mm, 1400 mm, 150 mm, 1130 mm, and 1870 mm along the lower layout. Vertical room measurements include 3000 mm, 4380 mm, 3550 mm, and 2300 mm segments that define the room proportions and spatial distribution. The architectural layout plan also shows a wall thickness of around 150 mm and doorway positioning for functional room connectivity. This residential room layout plan AutoCAD DWG drawing provides accurate dimensional references and architectural planning information used for residential building space planning, interior organization, and construction documentation.
