Typical Aluminum Glass Wall Detail With 24mm Double Glass Section

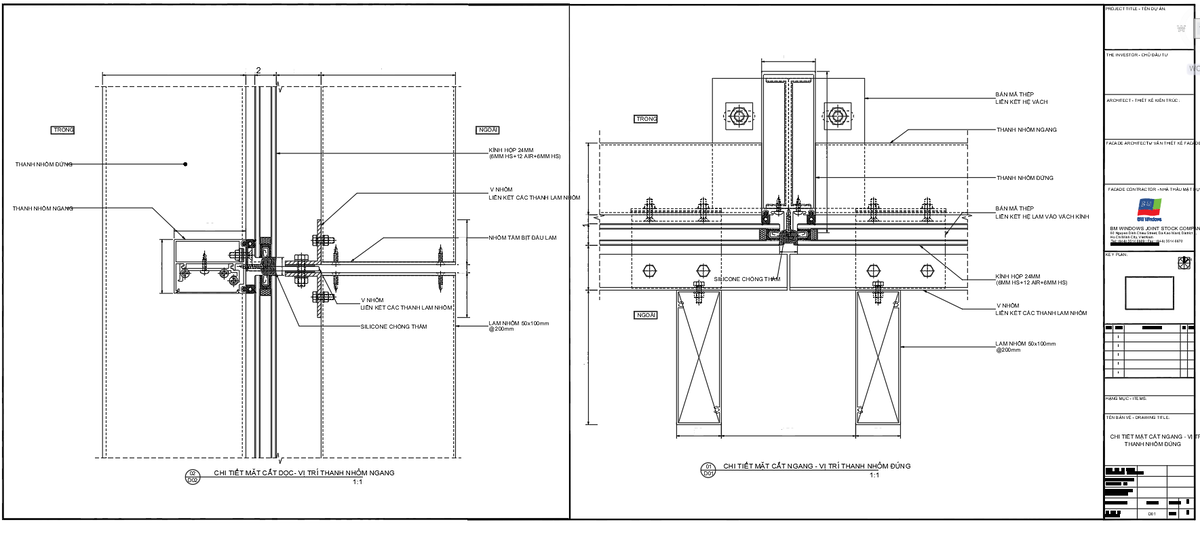

 Typical aluminium glass wall detail drawing presenting façade construction sections with horizontal and vertical aluminium member connections and laminated glass assembly details. The drawing shows sectional details of aluminium vertical and horizontal profiles supporting a 24mm insulated glass unit composed of 6mm heat-strengthened glass plus 12mm air gap plus 6mm heat-strengthened glass. Structural aluminium connections include steel plate brackets linking the façade system to the structural wall and aluminum V connectors used to fix the aluminum louver system to the curtain wall frame. The detail also illustrates aluminum louvers sized 50x100mm installed at 200mm spacing and connected through aluminum brackets to the glass façade system. Additional construction elements include silicone waterproof sealant joints, aluminum end caps, steel plate façade anchors, and internal structural support members. Dimension references shown in the drawing include profile widths such as 60mm aluminum frame sections, 150mm structural support spacing, and detailed façade assembly thickness, including 24mm insulated glass panels. These façade construction details present longitudinal and cross-sectional views explaining the connection between aluminum mullions, glass panels, and exterior shading louvers used in architectural façade systems. This aluminum glass wall detail AutoCAD DWG drawing provides accurate façade installation references, connection details, and structural glass wall assembly information used for architectural façade design and construction documentation.
