Factory Parking Layout 29850mm Grid 5000mm Bay Plan DWG File

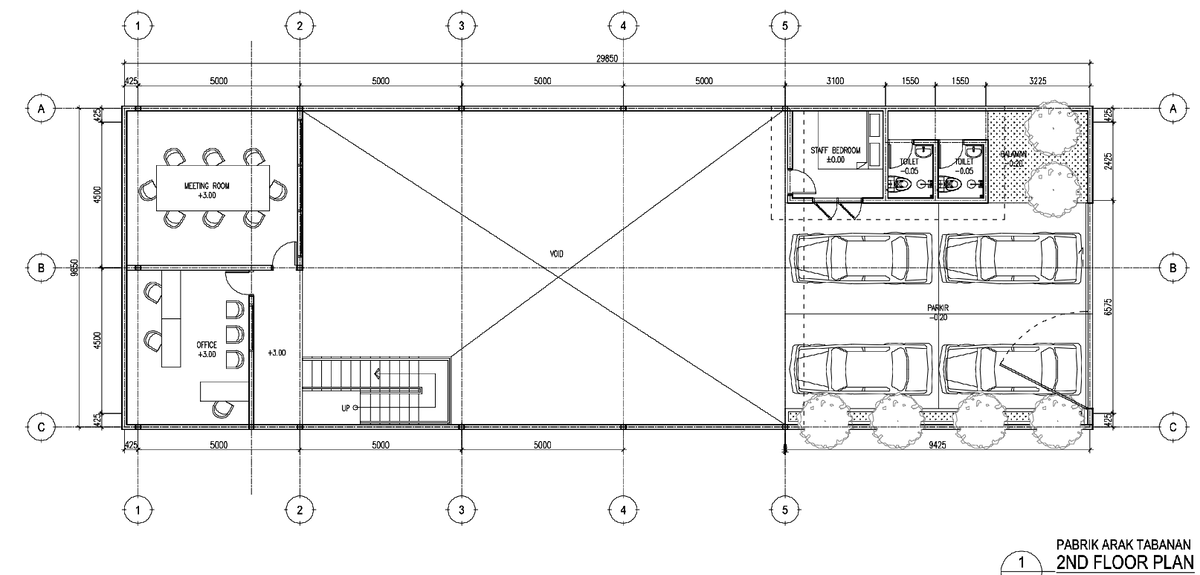

This AutoCAD DWG file presents a detailed factory parking layout plan designed with an overall length of 29850mm and structured grid spacing of 5000mm bays, as clearly illustrated on page 1. The drawing includes organized parking areas accommodating multiple vehicles with designated circulation space, along with precise dimensional annotations such as 3100mm, 1550mm, and 3225mm segments for functional zoning. The layout integrates a meeting room and office space, each measuring approximately 5000mm by 4500mm, a central void area, and stair access marked as UP for vertical movement. Additional functional areas include a staff bedroom, toilet blocks, and landscaped zones with tree placements along the boundary. Grid lines labelled A, B, C, and 1 to 5 ensure accurate alignment and structural coordination. This factory parking layout DWG file is highly suitable for architects and engineers for efficient parking planning and industrial space organization.
