Residential Layout Plan DWG Level 3 with 14x19 Bedroom Balcony

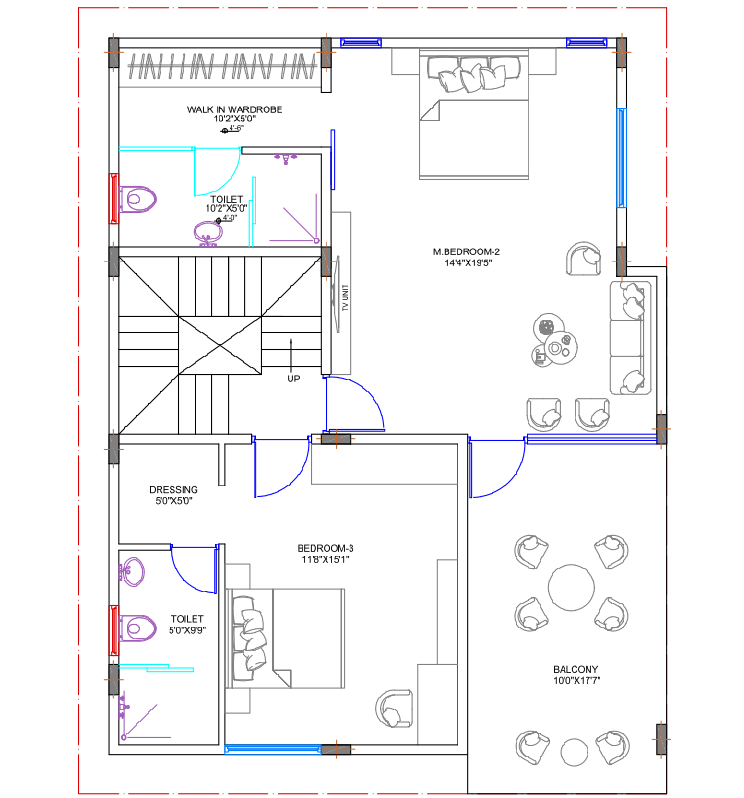

This AutoCAD DWG file showcases a detailed residential layout plan DWG for the level 3 floor with precise room dimensions and functional planning. The layout includes a spacious master bedroom measuring 14 feet 4 inches by 19 feet 5 inches, designed with a seating arrangement and TV unit space. A secondary bedroom of 11 feet 8 inches by 15 feet 1 inch is also provided with proper circulation. The plan features a walk-in wardrobe sized 10 feet 2 inches by 5 feet 0 inches connected to a toilet of the same 10 feet 2 inches by 5 feet 0 inches dimension. An additional dressing area of 5 feet 0 inches by 5 feet 0 inches and a common toilet of 5 feet 0 inches by 9 feet 9 inches are included for convenience. The staircase layout is centrally positioned for vertical movement, marked with the UP direction. A large balcony measuring 10 feet 0 inches by 17 feet 7 inches enhances the outdoor usability of the space. This residential layout plan DWG is ideal for architects, civil engineers, and interior designers looking for accurate AutoCAD drawings with complete dimension details and practical room arrangement.
