Water Trough Rafter Fabrication DWG Column IPE 120 16mm Plate

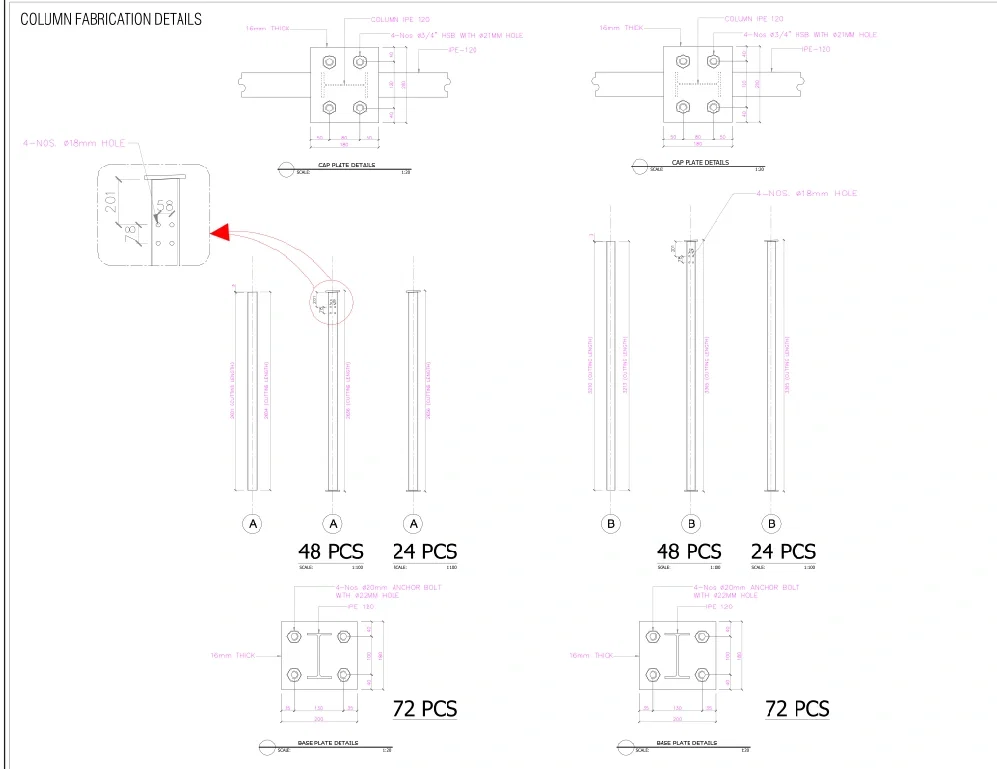

Water Trough Rafter Fabrication DWG Column IPE 120 16mm Plate provides a complete AutoCAD fabrication drawing for structural steel column and rafter connections used in water trough systems. The drawing includes column IPE 120 sections with a 16mm thick base plate and cap plate details featuring 4 numbers 18mm holes and 4 numbers 22mm anchor bolt holes for secure fixing. It shows detailed fabrication components such as MS bolts with 21mm holes and precise plate dimensions ensuring structural stability. The layout includes multiple column types labeled A and B with quantity specifications of 48 PCS, 24 PCS, and 72 PCS, along with elevation views and connection detailing. Scales such as 1 20 and 1 30 are used for accurate fabrication reference. This Water Trough Rafter Fabrication DWG Column IPE 120 16mm Plate is essential for engineers and fabricators for precise structural detailing and execution.
