Residential Second Floor Column Detail Plan with Beam Sections DWG

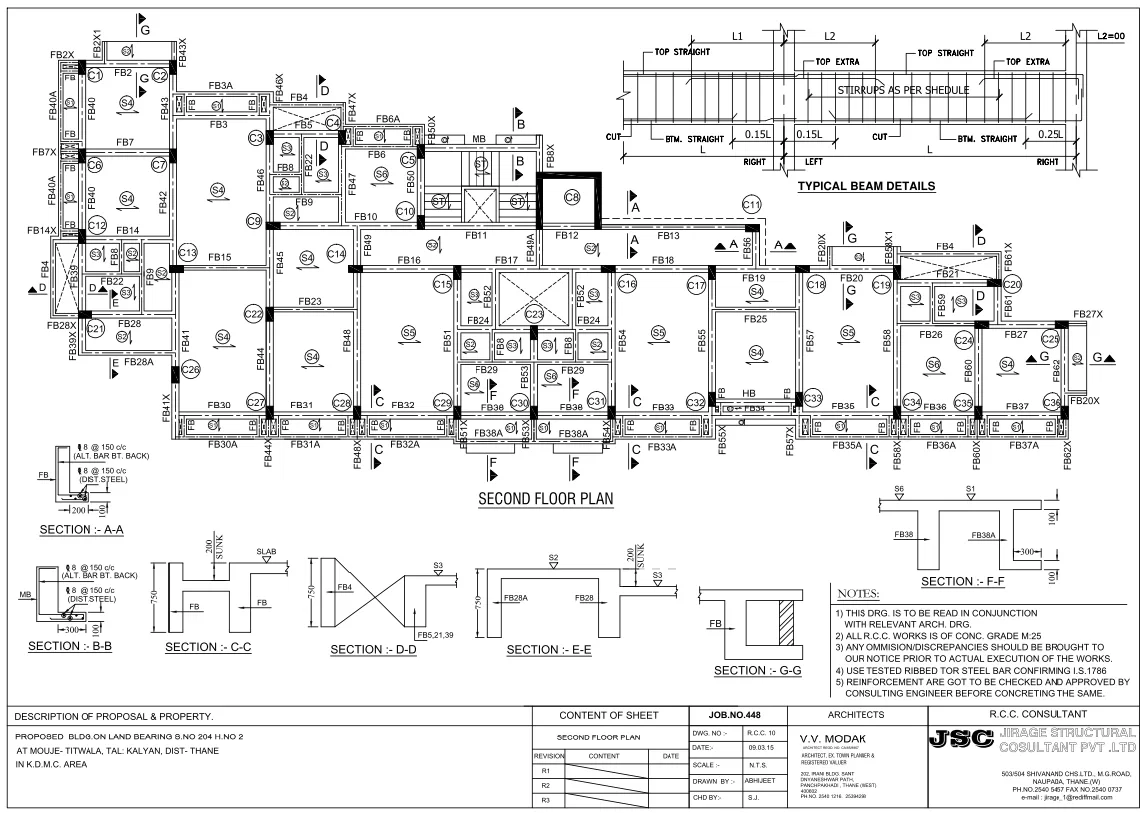

A comprehensive Residential Second Floor Column Detail Plan in AutoCAD DWG format, including full structural layout and beam detailing for accurate construction execution. This drawing presents a detailed second-floor plan with clearly marked column positions labeled C1 to C36 and beam layouts such as FB2, FB3, FB4, FB10, FB24, FB38, and more, ensuring proper load distribution across the structure. The plan also includes typical beam details with measurements like 0.15L and 0.25L for reinforcement zones, along with top straight and top extra bar placements. Multiple sectional views, such as section A A B B C C D D E E F F and G G, are provided showing beam depth, slab thickness around 200mm to 750mm, and reinforcement details including 8mm bars at 150 c c spacing. The drawing follows RCC standards with M25 concrete grade and ribbed steel reinforcement as per IS codes, making it highly useful for architects, civil engineers, and structural consultants working on residential second-floor column and beam detailing.
