Door Window Joinery Detail 2400mm Frame Glass DWG File Plans

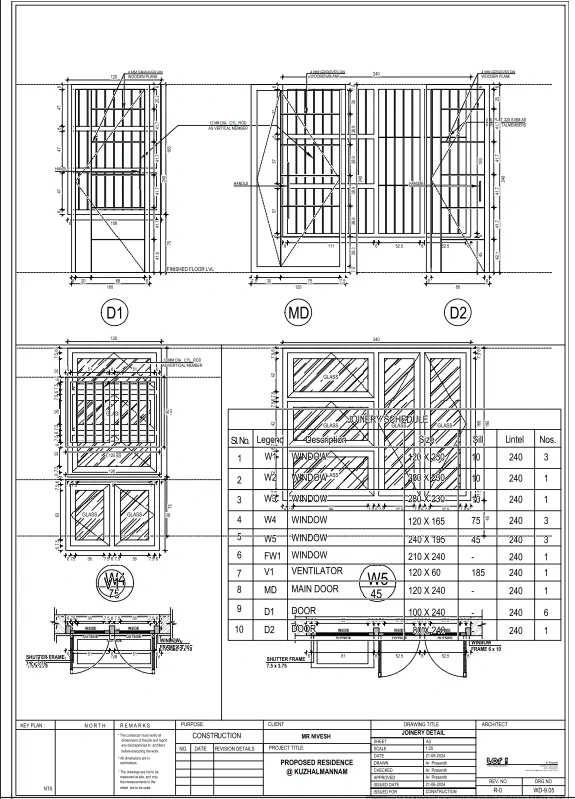

This AutoCAD DWG file presents detailed door and window joinery drawings for residential construction, including multiple types such as D1, D2 main door, and various window types W1, W2, W3, W4, W5, along with ventilator V1. The drawing includes precise dimensions such as door height of 2400 mm and window sizes like 1200 by 1650 mm, 2400 by 795 mm, and 2100 by 2400 mm for different configurations. Joinery details illustrate frame sections, shutter frame sizes of 75 by 35 mm, glass panel placements, and lintel levels marked at 240 mm. The layout also includes sectional views, elevations, and frame fixing details showing glass panels, wooden frames, and opening mechanisms. Additional details such as ventilator size 120 by 60 mm and multiple door configurations with double shutters are clearly defined for construction accuracy. This joinery detail drawing is suitable for architects and builders requiring precise door and window fabrication details in AutoCAD DWG format.
