Farm House Layout Plan Patio 30ft TV Room 27ft AutoCad DWG File

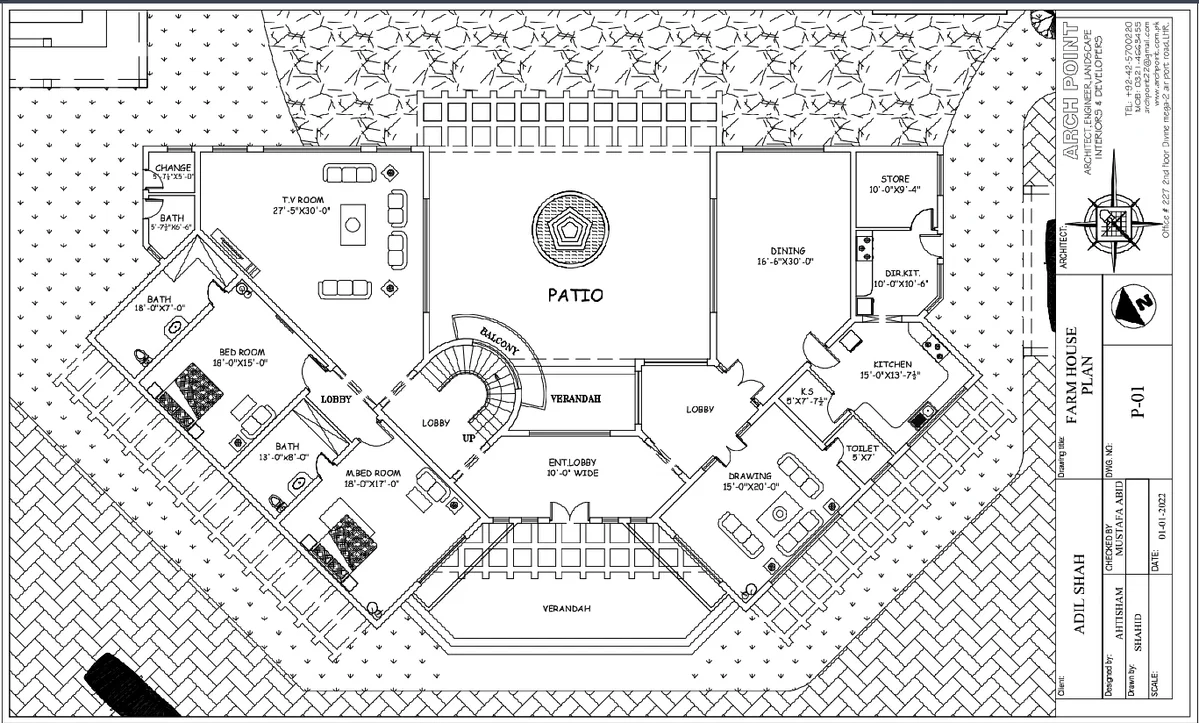

This AutoCAD DWG file presents a detailed farmhouse layout plan featuring a central patio and well-organized residential spaces with clear dimensional planning. The drawing includes a spacious TV room measuring 27 feet 5 inches by 30 feet 0 inches, along with a dining area sized 16 feet 6 inches by 30 feet 0 inches. Bedrooms are designed with dimensions such as 18 feet 0 inches by 15 feet 0 inches, and the master bedroom is 18 feet 0 inches by 17 feet 0 inches, each connected with attached bathrooms. The plan also incorporates a kitchen layout of 15 feet 0 inches by 13 feet 7.5 inches, along with a store room 10 feet 0 inches by 9 feet 4 inches and dressing and bath areas. A central patio with a surrounding verandah and circular staircase balcony enhances circulation and aesthetics. The entry lobby is 10 feet in width and has multiple lobby connections to ensure smooth movement across spaces. This farmhouse layout drawing is ideal for architects and designers requiring detailed residential planning in AutoCAD DWG format.
