Residential Ground Floor Beam Layout 24x24 Column DWG Files Plan

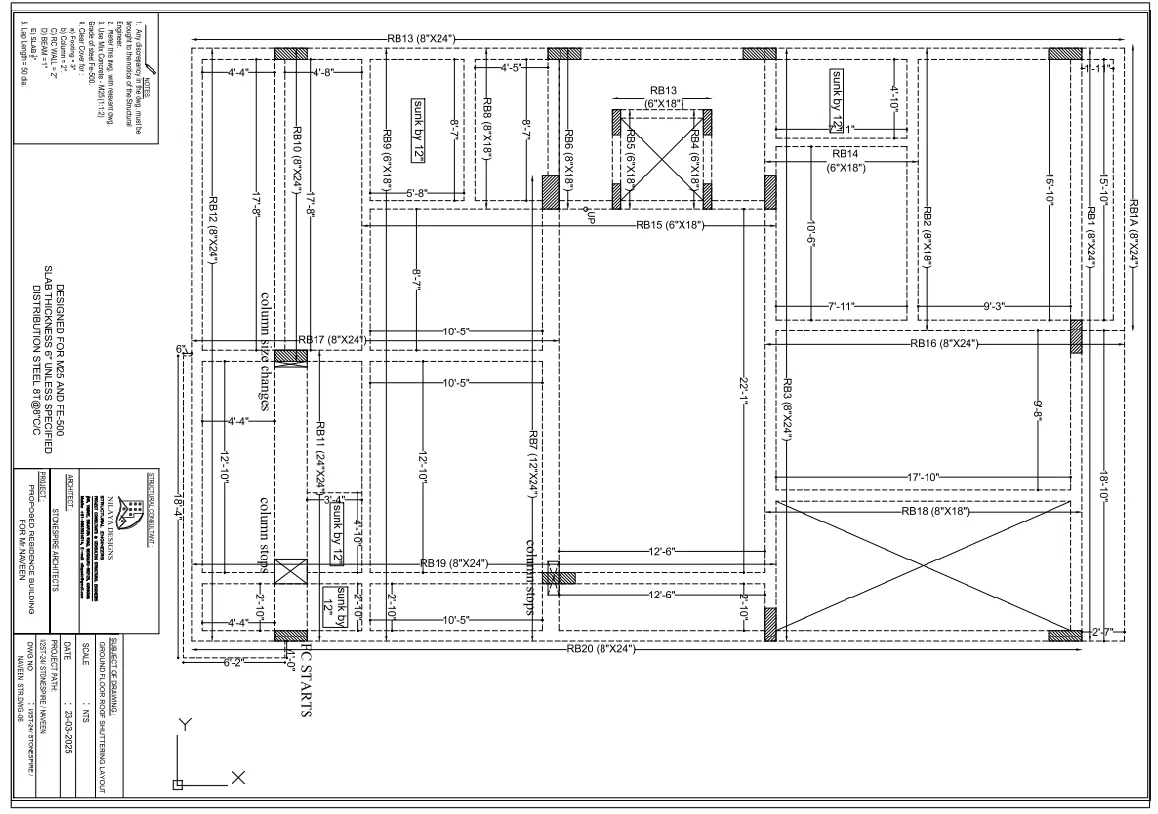

The Residential Ground Floor Beam Layout 24x24 Column DWG Plan is a detailed AutoCAD structural drawing created for architects, civil engineers, and construction professionals. This CAD file illustrates a complete beam layout for the ground floor integrated with 24x24 column positioning, ensuring structural stability and load distribution. It includes beam sizes, reinforcement alignment, column grid spacing, and connection details that help in accurate structural planning. The drawing clearly defines beam directions, spans, and junctions, supporting efficient construction and precise execution on site.
