Boiler Yoshimine Layout 1227 Length 1085 Height DWG Plan files

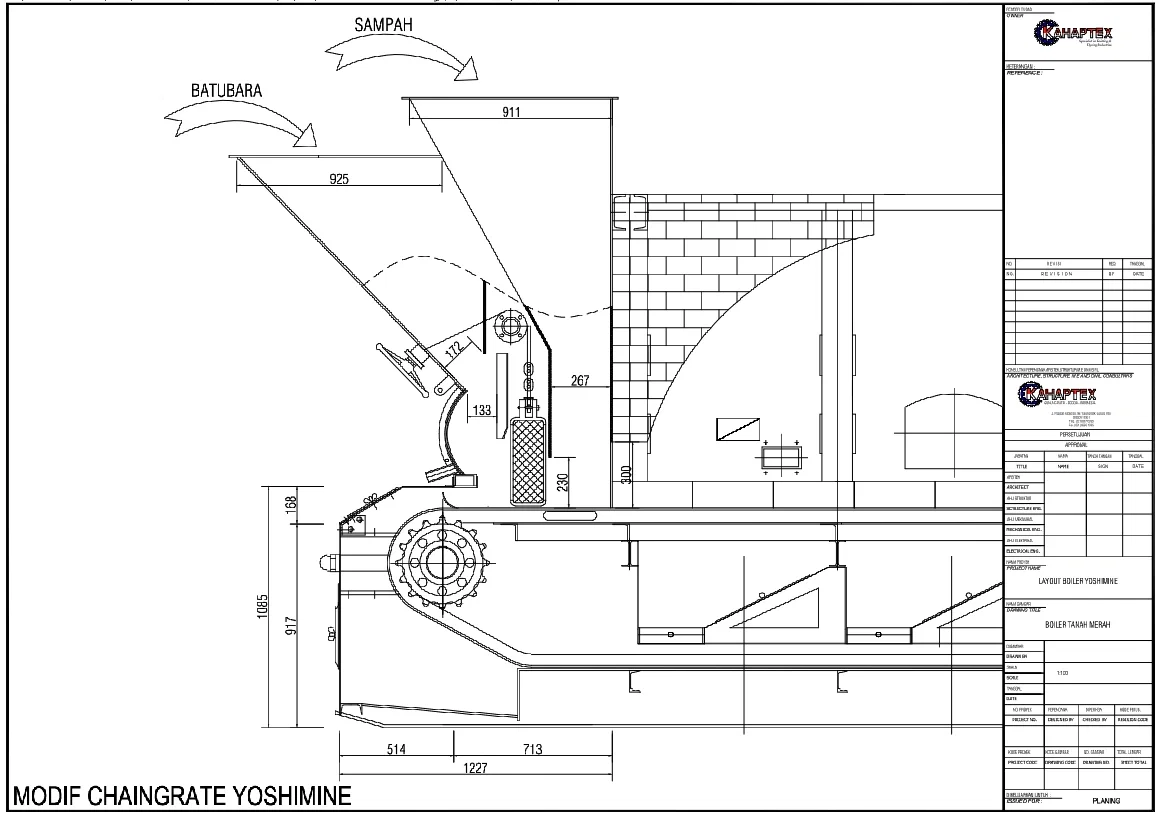

This AutoCAD DWG file presents a detailed boiler Yoshimine layout with chaingrate system showing complete sectional arrangement and mechanical detailing. The drawing includes key dimensions such as total base length 1227mm with segment divisions of 514mm and 713mm, overall height 1085mm, and internal component spacing like 267mm 230mm and 300mm. It illustrates fuel flow directions for batubara and sampah with inlet lengths of 925mm and 911mm respectively. The layout shows chaingrate mechanism, rotary components, combustion chamber, support frame, and structural housing with brick lining. Additional details include mechanical fittings, access points, and alignment of internal parts for efficient operation. This boiler Yoshimine layout DWG is useful for engineers and designers working on industrial boiler systems and mechanical layout planning.
