Sawung Garden Residence Elevation 4700mm Road Detail DWG files

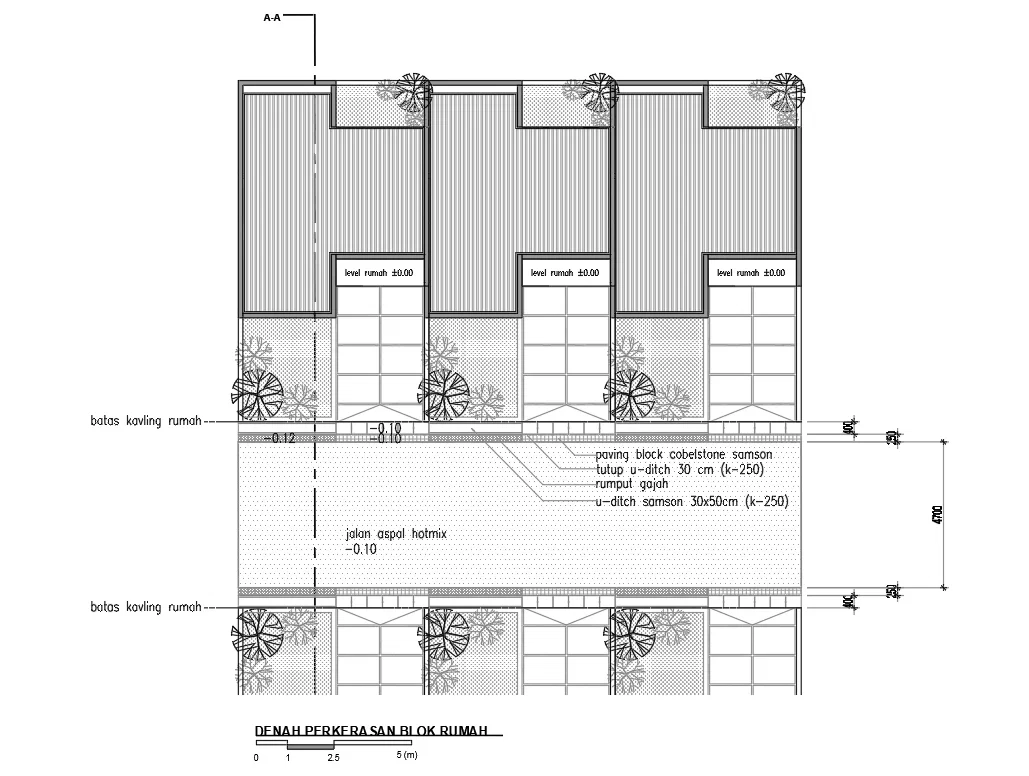

This AutoCAD DWG file presents a detailed Sawung Garden Residence elevation and road section layout with precise construction and surface detailing. The drawing includes a residential block elevation with repeated unit façade design, clearly showing level rumah plus 0.00 and boundary markings. The road section is defined with an overall width of 4700mm including asphalt hotmix road level minus 0.10 and paving block cobblestone finish along the edges. Detailed drainage design is included with U ditch dimensions of 30cm and 30x50cm marked with K250 specification for structural strength. Landscape elements such as grass areas and boundary lines, batas kavling rumah, are also indicated for site planning. Section A provides a clear vertical reference for elevation and ground treatment. A scale of 0 to 5 meters is included for measurement accuracy. This drawing is ideal for architects, civil engineers, and builders working on residential elevation and road infrastructure projects using the AutoCAD DWG format.
