Columns Layout Ground Floor Plan DWG 7200 Grid 50400 Lengths

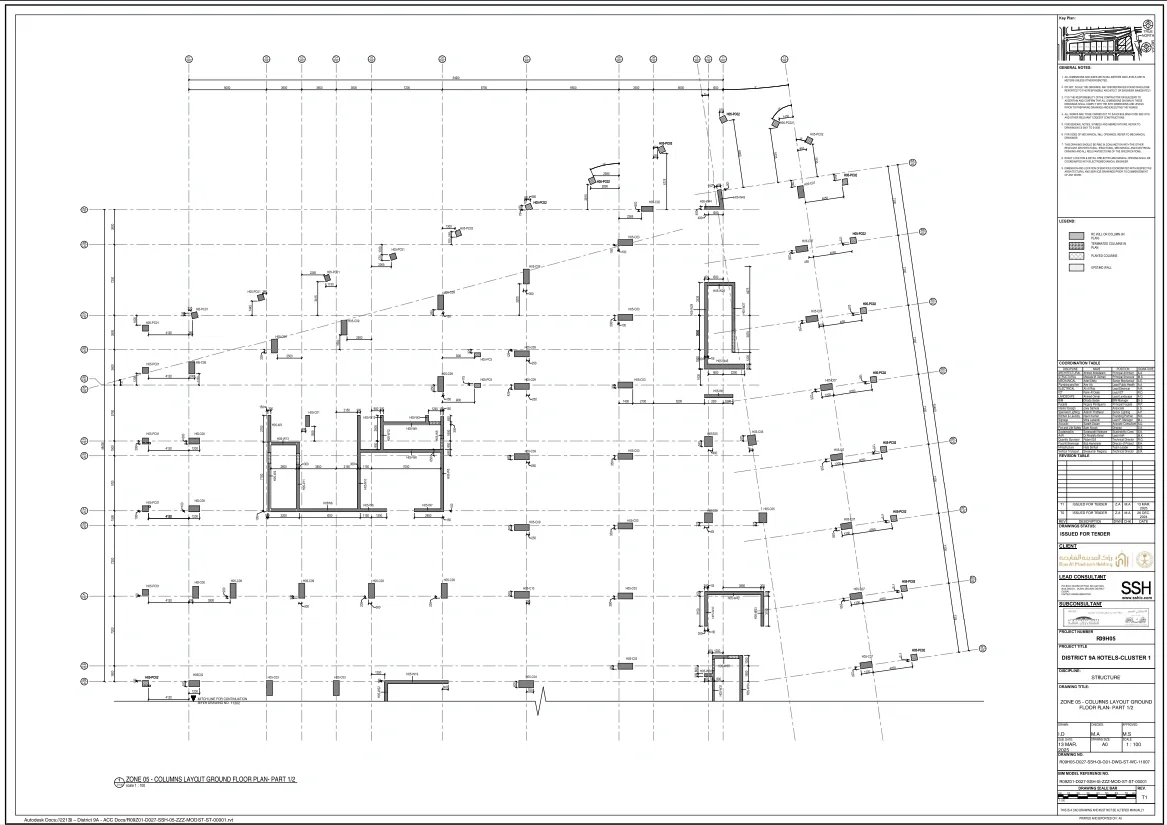

This AutoCAD DWG file presents a detailed column layout ground floor plan DWG designed with a precise structural grid and column positioning. The drawing includes a structured grid system with repeated spacing of 7200 and an overall horizontal length of 50400, along with extended dimensions reaching up to 54900 and 48400. The layout showcases multiple column types such as H05 C07, H05 C09, H05 C03, and H05 PC02 with clear placement references across grid lines. It also highlights wall alignments, mechanical openings, and structural coordination points integrated within the plan. Angular orientations, including 55 degrees, 35 degrees, and 24 degrees, are marked for specific column alignments. Additional details include section references, match lines for continuation, and coordination notes for architectural, structural, and MEP drawings. The drawing is prepared at a scale of 1:100 with all dimensions in millimeters and levels in meters, ensuring accuracy for execution. This column's layout, ground floor plan DWG with 7200 grid spacing and 50400 layout length, is essential for structural engineers and construction professionals.
