House Design DWG Ground Floor Roof Plan Elevation Section 1 100

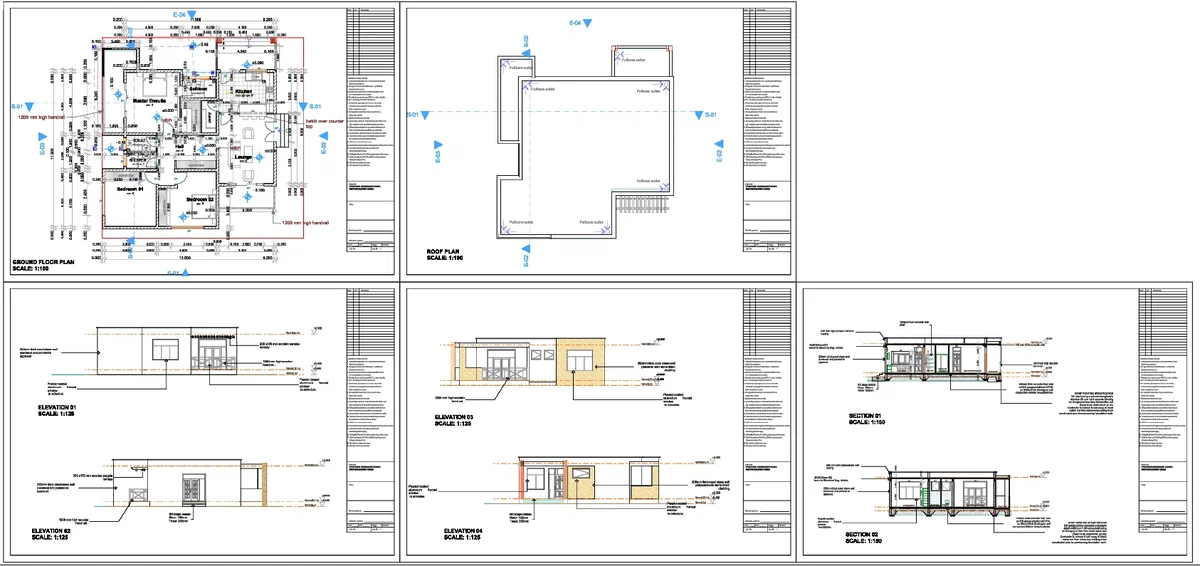

This AutoCAD DWG file presents a complete house design layout, including a detailed ground floor plan, roof plan, multiple elevations, and sectional drawings with precise dimensions and architectural annotations. The ground floor plan illustrates a well-organized layout featuring bedrooms, a kitchen, a living area, a hall, toilets, and circulation spaces with accurate measurements and structural detailing. The roof plan at scale 1:100 shows the full slab outline, drainage points, and parapet structure layout. Elevation drawings at scale 1 125 provide front and side views highlighting exterior finishes, door and window placements, and façade detailing. Section drawings at scale 1:150 reveal internal structural components, foundation details, slab levels, and vertical height specifications. This DWG file is highly useful for architects, civil engineers, interior designers, and construction professionals seeking precise and ready-to-use residential house design drawings with complete measurement clarity and professional CAD standards.
