House Layout Ground Floor DWG Plan 19 9 x 14 9 Lobby Designs

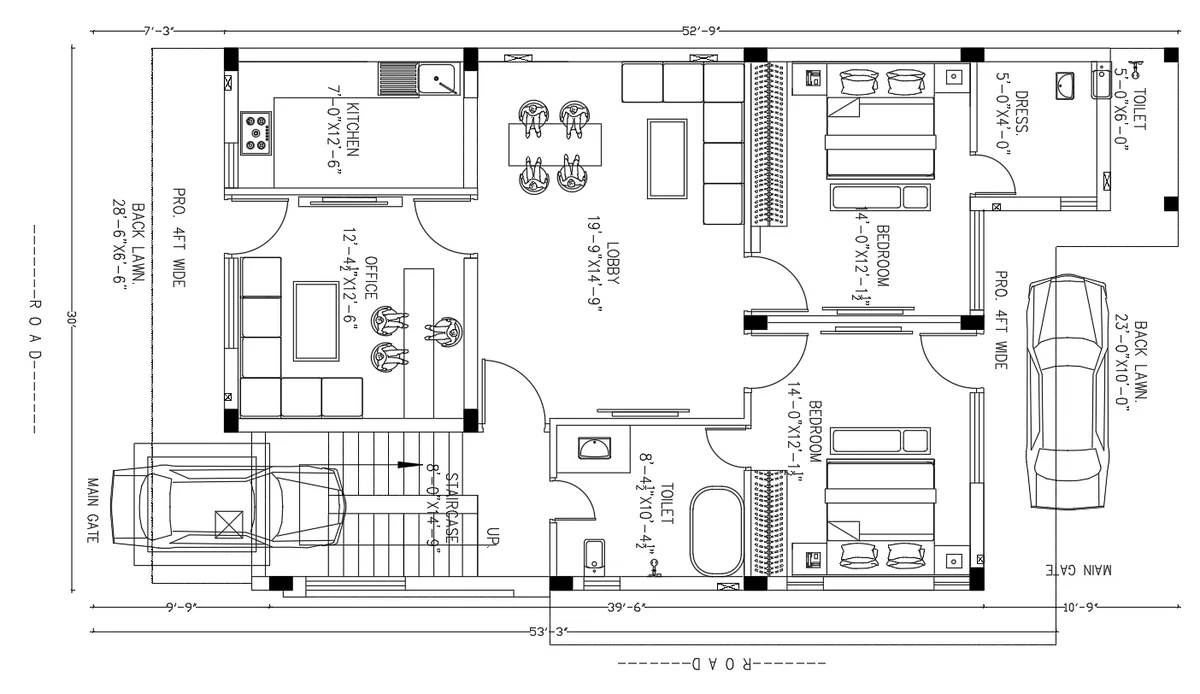

This AutoCAD DWG file presents a detailed house layout, ground floor plan with accurate room dimensions, and functional spatial arrangement. The drawing includes a central lobby measuring 19 9 x 14 9 connected to key areas such as office 12 4 x 12 6 and kitchen 7 0 x 12 6, designed for efficient circulation. Two bedrooms, each sized 14 0 x 12 1 are positioned for privacy along with attached facilities, including a toilet 8 4 x 10, 4 and dress 5 0 x 4 0 and an additional toilet 5 0 x 6 0. The plan also features a staircase 8 6 x 14 9 for vertical movement, a parking area with direct access from the main gate, and front and back lawn spaces measuring 28 6 x 6 6 and 23 0 x 10 0, respectively. A 4 ft wide passage is provided for smooth movement around the layout. Structural walls, openings, and furniture placements are clearly defined, ensuring practical residential planning. This DWG file is suitable for architects and designers requiring a complete ground-floor house layout with precise dimensions and CAD detailing.
