Residential Floor Layout DWG 60 0 x 40 0 Plan 2BHK 3BHK Units Design

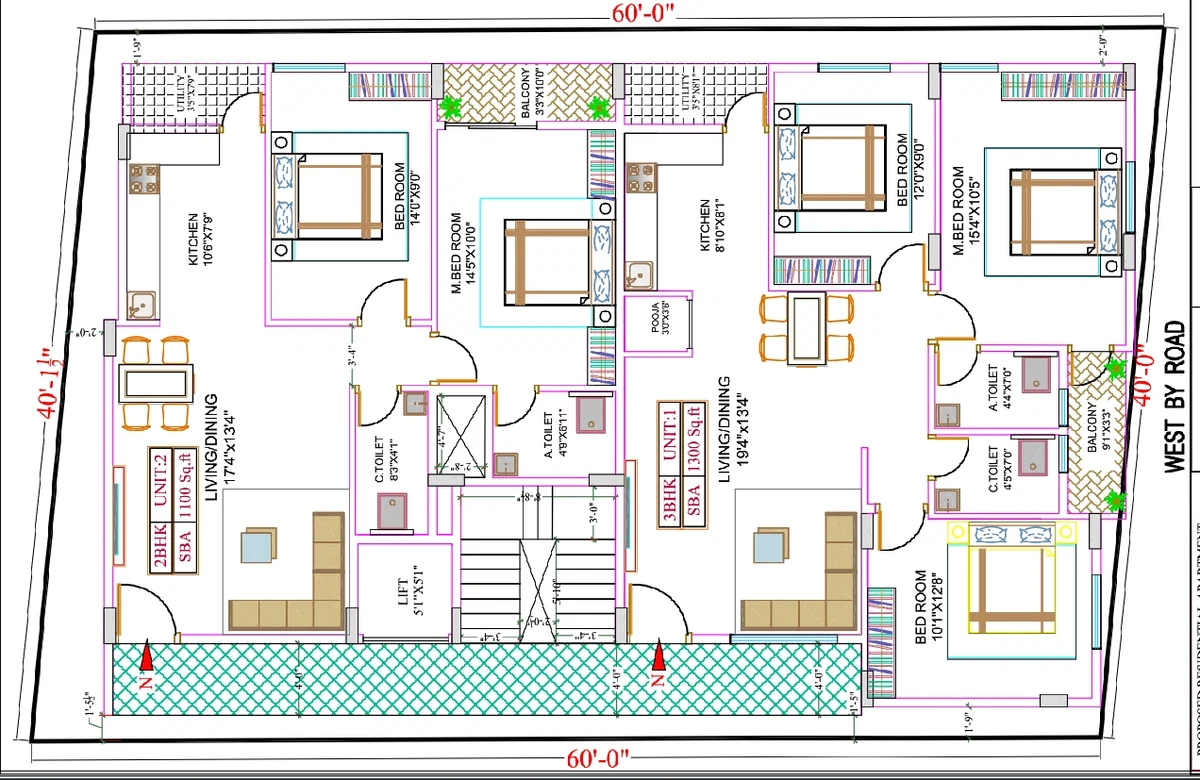

This AutoCAD DWG file presents a detailed residential floor layout plan designed within overall dimensions of 60 0 x 40 0 featuring a mix of 2BHK and 3BHK units with clear space planning and measurements. The drawing includes 2BHK units with SBA 1100 Sq. ft. and 3BHK units with SBA 1300 Sq.ft arranged efficiently around a central circulation core with lift size 5 1 x 5 1 and staircase access. The layout shows living dining areas such as 19 4 x 13 4 and 17 4 x 13 4 connected to kitchens sized 10 6 x 7 9 and 8 10 x 8 1 with utility spaces 3 5 x 8 1. Bedrooms include master bedroom 15 4 x 10 5 and additional bedrooms like 10 1 x 12 8 and 12 0 x 9 0 along with attached and common toilets measuring around 4 4 x 7 0 and 4 5 x 7 0. Balconies such as 9 1 x 3 3 and 3 3 x 10 0 provide outdoor extensions. The plan also includes a pooja space 3 0 x 3 6 and clearly defined circulation paths with directional orientation. This DWG file is suitable for architects and designers requiring a complete apartment floor layout with multiple unit configurations and accurate CAD detailing.
