Bus shelter roof plan elevation and detail drawing 1500mm size

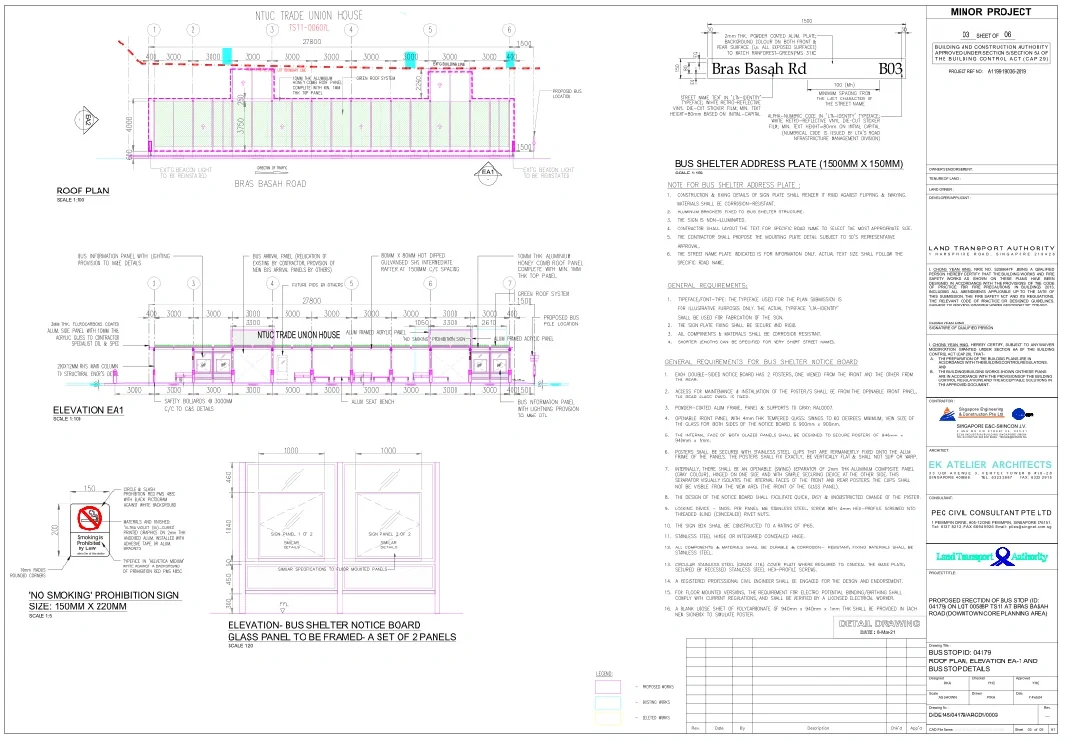

This bus shelter drawing provides a complete architectural and construction detail set, including roof plan and elevation EA1 at scale 1 is to 100, along with detailed component layouts for accurate execution. The roof plan illustrates the full shelter length with modular divisions of 3000 mm bays and overall arrangement along Bras Basah Road, while elevation EA1 defines structural height, framing system, and panel positioning. The drawing includes a bus shelter address plate detail sized 1500 mm x 150 mm and no smoking prohibition sign of 150 mm x 220 mm with clear placement references. Additional details show the glass panel notice board elevation with framed panels, lighting provision, and fixing details. General notes and construction specifications are also included to guide installation and material usage. This bus shelter roof plan elevation and detail drawing ensures precise dimensioning and complete structural clarity for architects, engineers, and construction professionals.
