Proposed Residence Structure DWG Layout plan Foundation 1200 mm

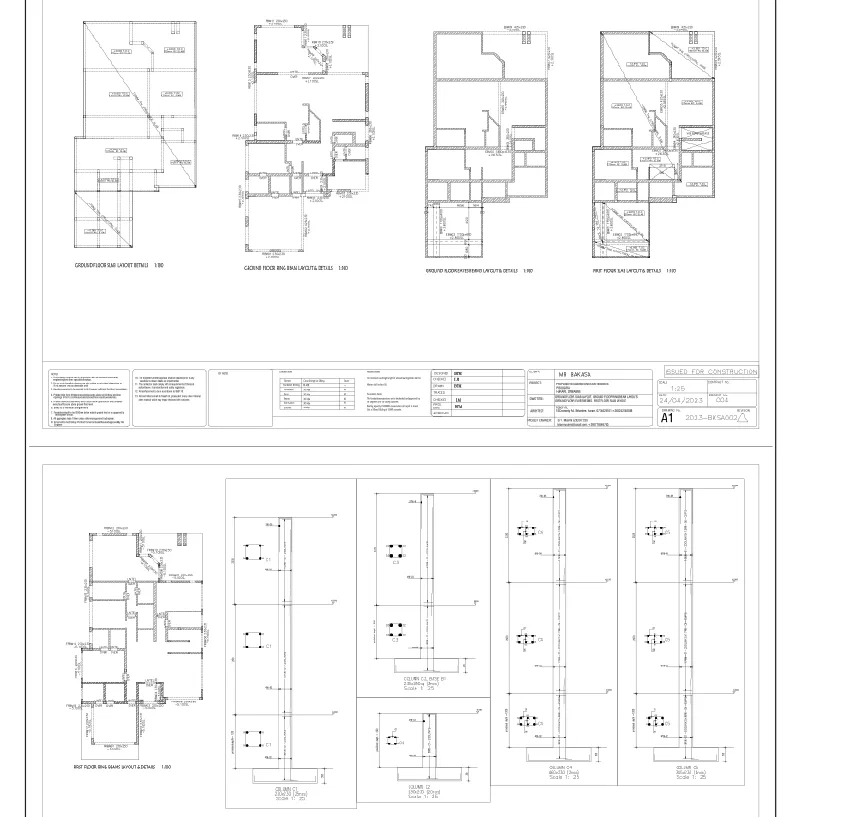

This AutoCAD DWG file presents detailed structural drawings for a proposed residence including foundation layout, ground floor slab layout, ring beam layout, eaves beam details, and first floor slab layout with complete reinforcement specifications. The drawing includes foundation depth specified at 1200 mm below natural ground level, along with structural elements such as beams, columns, slabs, and stair components designed with 30 MPa concrete strength and reinforcement as per BS8110 standards. It also illustrates column reinforcement sections, beam connections, and slab detailing with precise dimensions and layout coordination. Additional technical notes cover brick strength requirements of 7 MPa, mortar class specifications, 50 mm concrete blinding, and aggregate size of 19 mm for construction accuracy. The file integrates multiple layout plans and sectional details with clear measurements and annotations to support structural planning and execution for residential construction projects.
