Proposed Netaji Subhash University Steels Truss DWG 18000 mm

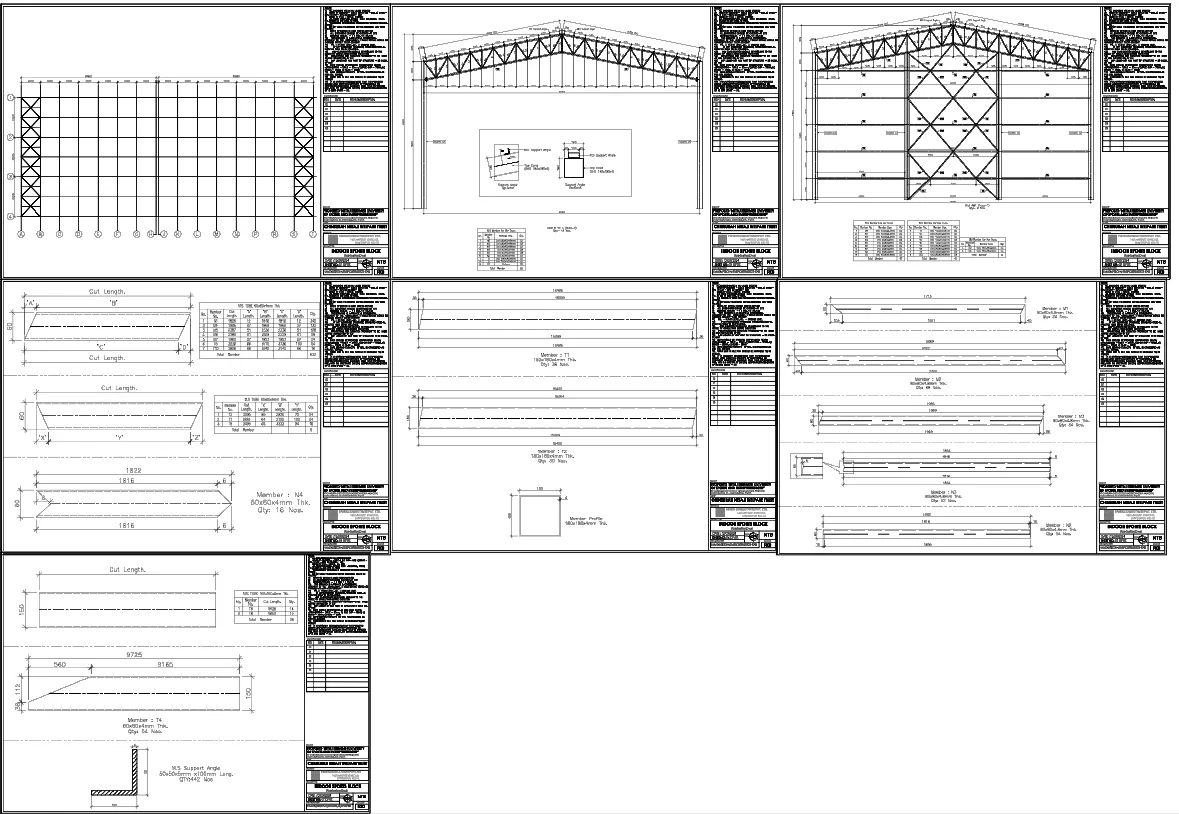

This AutoCAD DWG file presents detailed structural drawings for the proposed Netaji Subhash University of Sports and Entrepreneurship indoor sports block, focusing on steel roof truss layout, elevation, and fabrication details. The drawing includes a large span steel truss system of approximately 18000 mm with clearly defined grid spacing, column alignments, and cross-bracing systems for structural stability. It illustrates truss elevation views, framing layout, and detailed member configurations, including cut lengths, section profiles, and connection assemblies. Fabrication details such as joint plates, base supports, and structural connections are provided with accurate dimensions. Additional information includes truss member schedules, sectional details, and measurement annotations to support the precise planning and execution of large span indoor sports structures.
