Column Position Plan 30m and 18m Road First Floor DWG Layout

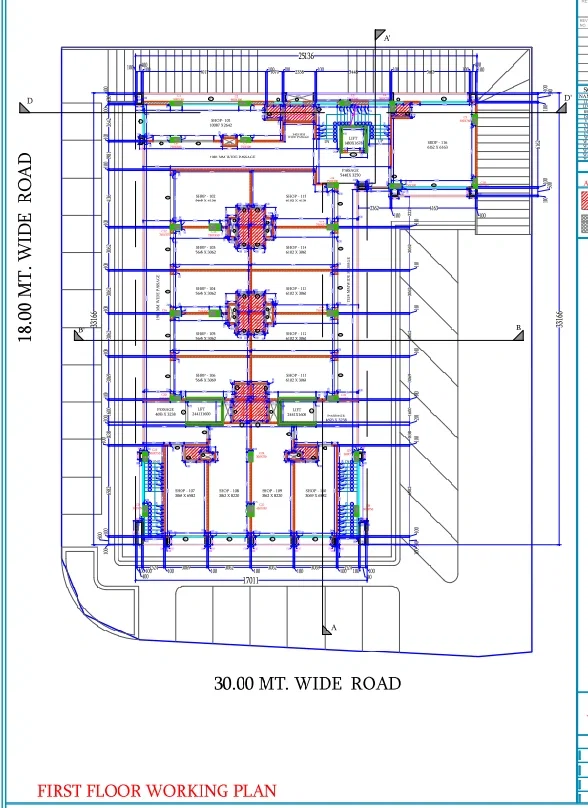

This AutoCAD DWG file presents a detailed column position plan as per the structure DWG for a first-floor working plan layout with clear road access of a 30.00-meter-wide road and an 18.00-meter-wide road. The drawing includes precise column grid placements labeled from C1 to C28 with varying sizes such as 900x300, 750x300, 300x750, and 750x450, ensuring accurate structural alignment. It also illustrates beam bottom levels, slab levels, lift positions of sizes 1680x1678 and 2441x1600, multiple shop layouts with dimensions like 5645x3062, 6102x3062, and passages including 1981 mm and 1524 mm wide corridors. Additional details include staircases, toilets, an opening schedule, and structural references for beam and slab coordination. This DWG file is essential for architects and engineers to understand column positioning, load transfer points, and spatial planning in commercial building layouts.
