Ground Floor Lintel Beam DWG 9x6 4x6 9x15 Beam Detail DWG Plan

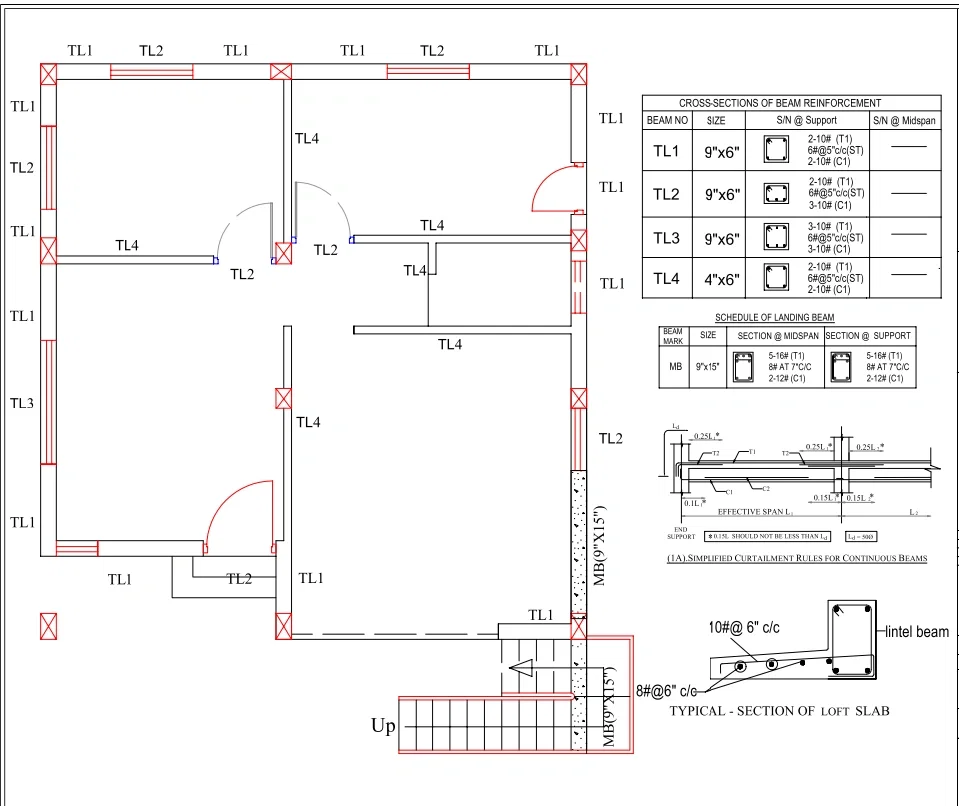

This ground-floor lintel beam DWG file provides a complete structural layout with detailed beam reinforcement and section specifications for residential construction projects. The drawing includes multiple beam types, such as TL1, TL2, TL3, sized 9x6 inches, and TL4, sized 4x6 inches, along with MB beams, sized 9x15 inches for landing support. Reinforcement details are clearly defined with 2 and 3 bars of 10mm diameter for top and bottom layers and 6mm stirrups at 5 inch c c spacing, ensuring structural stability. The file also presents cross sections of beam reinforcement at support and midspan, along with a schedule of landing beams and a typical loft slab section showing 10mm bars at 6 inch c c and 8mm bars at 6 inch c c. Effective span rules and simplified curtailment guidelines are included for accurate beam design execution. All dimensions follow architectural units with clear notes on concrete grade M20, steel grade Fe500, and clear cover specifications. This AutoCAD DWG drawing is ideal for architects, civil engineers, and structural designers for precise beam detailing and construction planning.
