Building Section Detail DWG Basement to Roof 17760 Level Plan

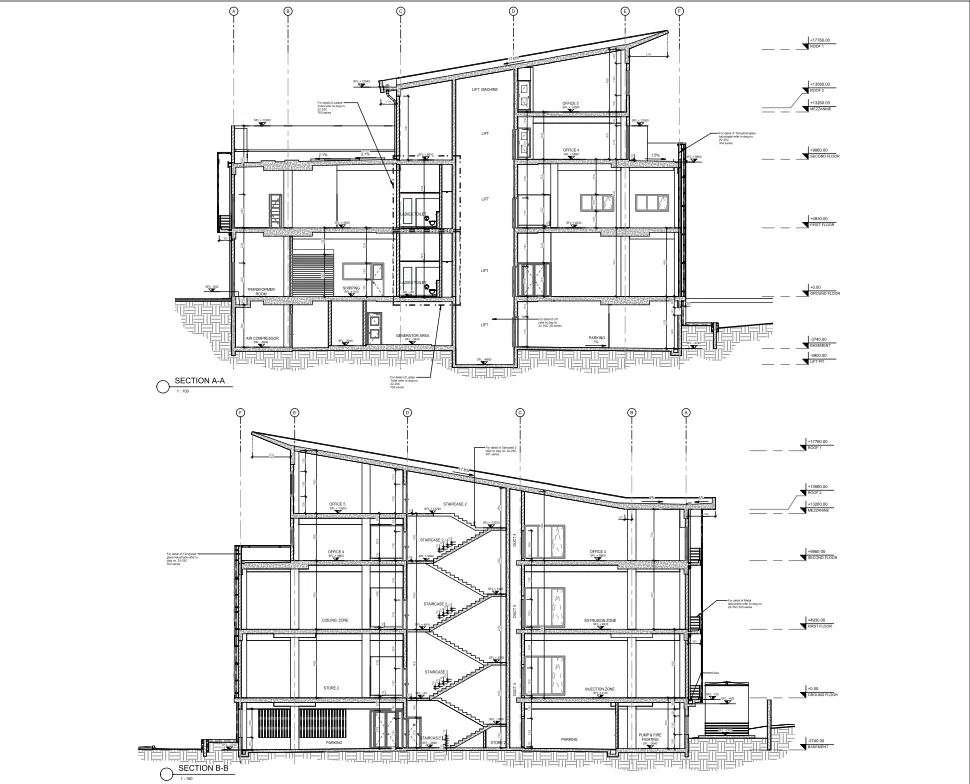

This building section detail DWG file presents comprehensive sectional views, including section AA and section BB, with complete vertical level information from the basement level minus 3740 mm to the roof level plus 17760 mm. The drawing clearly illustrates the ground floor at plus 0 00, first floor at plus 4930 mm, second floor at plus 9860 mm, mezzanine at plus 13260 mm, and the roof levels with structural and architectural detailing. It includes a lift shaft with a lift pit at minus 4900 mm, a lift machine room, and multiple lift cores ensuring vertical circulation efficiency. The sections show functional spaces such as offices, transformer room, generator area, parking zones, staircase cores, duct zones, extrusion and injection zones, along with slab levels, SFL markings, and structural grid references. Detailed staircase sections, slab thickness, floor heights, and service areas are accurately represented for execution clarity. This AutoCAD DWG drawing is highly useful for architects, civil engineers, and designers for understanding building height relationships, structural sections, and construction detailing.
