Villa Back Fence Detail DWG 2500 Height Retaining Wall Section

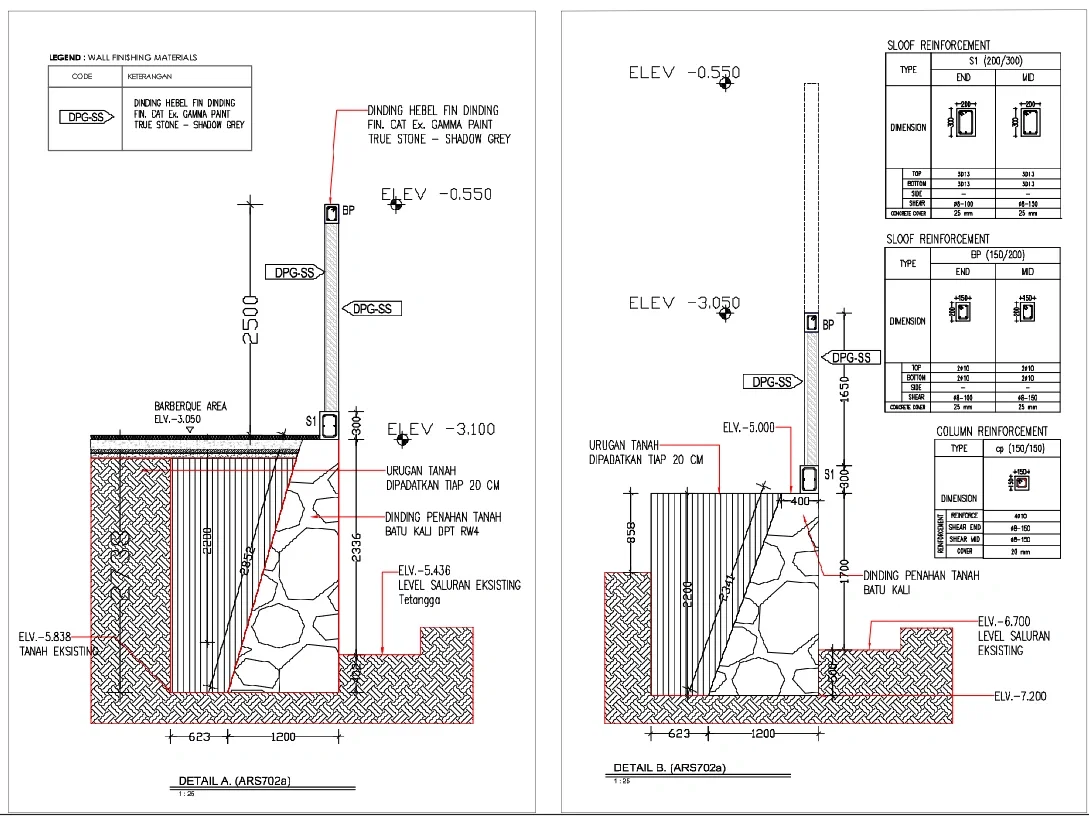

This villa back fence detail DWG file provides a comprehensive sectional design with detailed retaining wall and fence construction specifications. The drawing includes two detailed sections labeled Detail A and Detail B, showing a fence height of 2500 mm with precise elevation levels such as minus 0.550, minus 3.050, and minus 5.000, indicating ground and structural references. The design incorporates a retaining wall using stone masonry construction with compacted soil layers of 20 cm thickness and a base width of 1200 mm, ensuring structural stability. It also highlights foundation dimensions, including 623 mm base offset and stepped footing levels with existing soil levels marked up to minus 7.200. Wall finishing materials are defined with codes such as DPG SS, indicating Hebel wall finish with exterior paint and true stone shadow grey finish. Reinforcement details for sloof and column sections are included with dimensions and bar specifications, ensuring durability. This AutoCAD DWG drawing is ideal for architects, civil engineers, and builders for accurate fence construction, retaining wall detailing, and site execution.
