Hotel Layout Plan DWG Ground to Fourth Floor Room Detail Plan

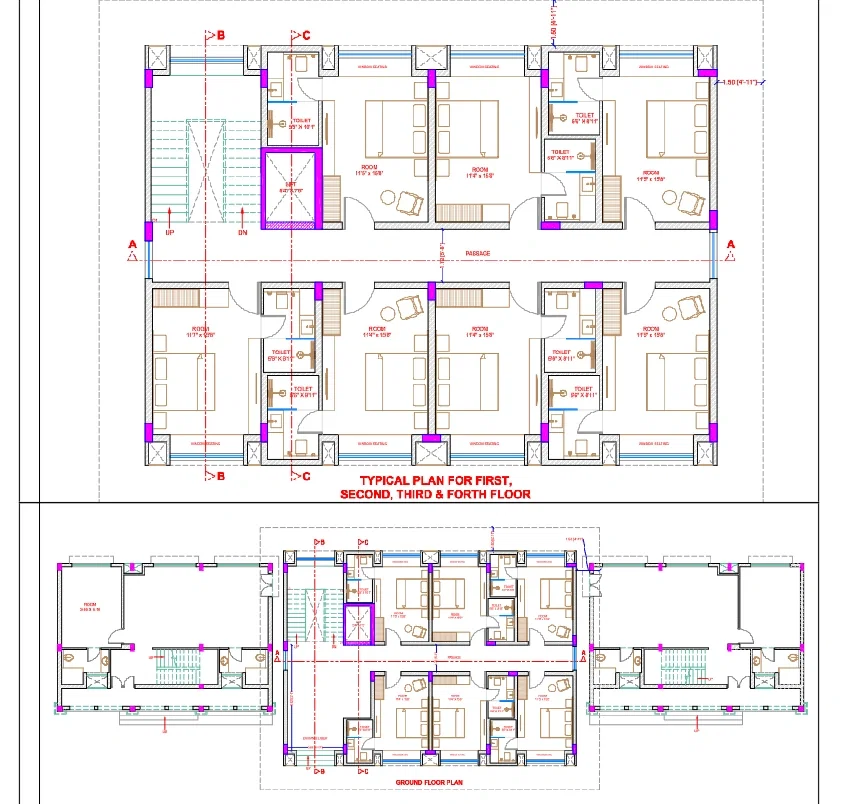

This hotel layout plan DWG file provides a detailed architectural design covering the ground floor and typical plans for first, second, third, and fourth floors with clear room arrangements and circulation layout. The drawing shows multiple guest rooms sized approximately 11ft5in by 15ft8in and 11ft4in by 15ft8in with attached toilets ranging from 5ft6in by 8ft11in to 5ft5in by 10ft1in, ensuring functional accommodation planning. A central passage connects all rooms with proper access to a lift sized 5ft4in by 7ft5in and a staircase for vertical circulation. The ground floor layout includes an entrance lobby approximately 11ft7in wide, along with hall spaces measuring around 9.19 by 5.16 meters and additional service rooms and toilets for operational use. The design also incorporates window seating elements along the facade, enhancing usability and aesthetics. Structural elements such as columns, walls, and circulation zones are clearly defined for execution. This AutoCAD DWG drawing is ideal for architects, interior designers, and builders for hotel planning and construction detailing.
