Modern Bungalow Electrical Layout DWG Ground Floor Room Plan

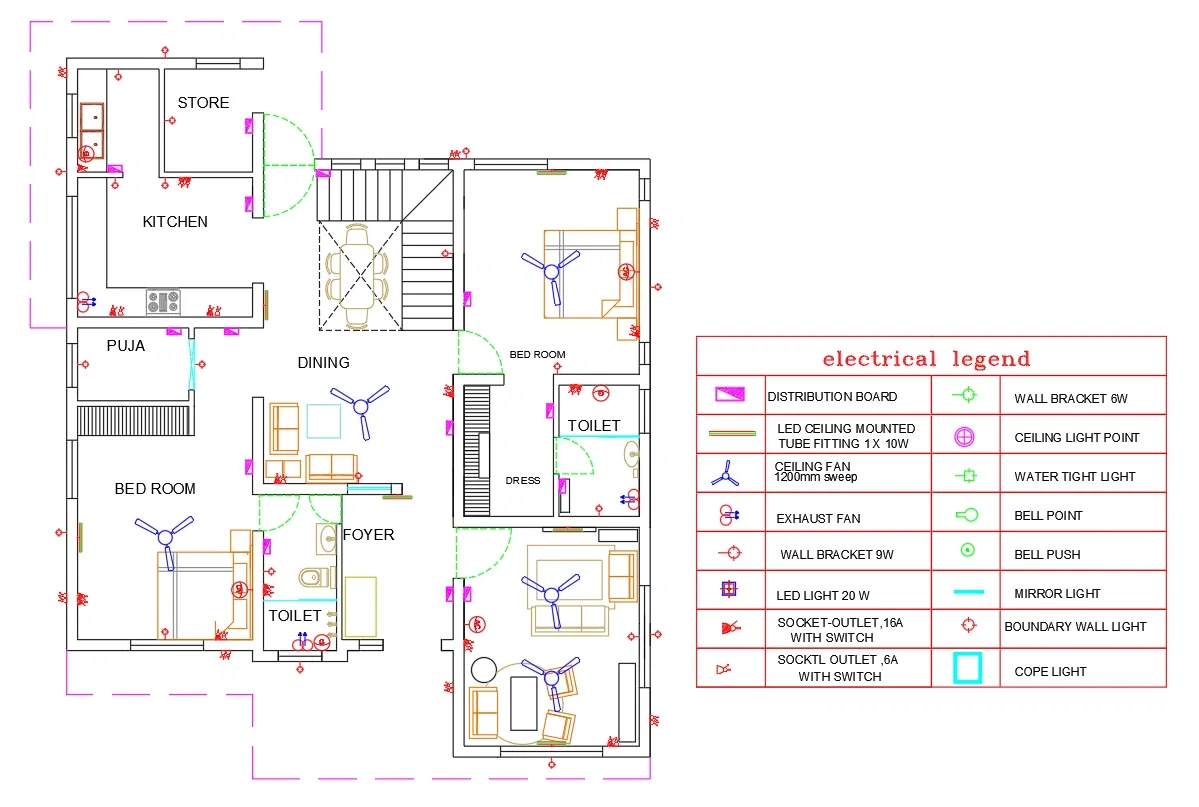

This modern bungalow electrical layout DWG file presents a detailed ground floor room plan integrated with a complete electrical and power socket layout for residential use. The drawing includes spaces such as kitchen, store, puja, dining, foyer, living, and multiple bedrooms with attached toilets and dress area arranged for efficient circulation. As shown in the electrical legend on page 1, the layout includes a distribution board, LED ceiling-mounted tube fittings 1x10W, ceiling fans 1200 mm sweep exhaust fans, LED lights 20W, wall bracket lights 6W and 9W, and various socket outlets, including 16A and 6A with switches. Additional components such as ceiling light points, water-tight lights, bell point bell push mirror lights, boundary wall lights, and cope lights are clearly indicated for accurate installation. The plan ensures proper placement of electrical fixtures across all rooms, including the kitchen and toilets, for functional usage and safety. This AutoCAD DWG drawing is ideal for architects, electrical engineers, and builders for residential electrical planning and execution.
