Built Drawing of Window 6800x3200 28mm Glass Curtain Wall DWG

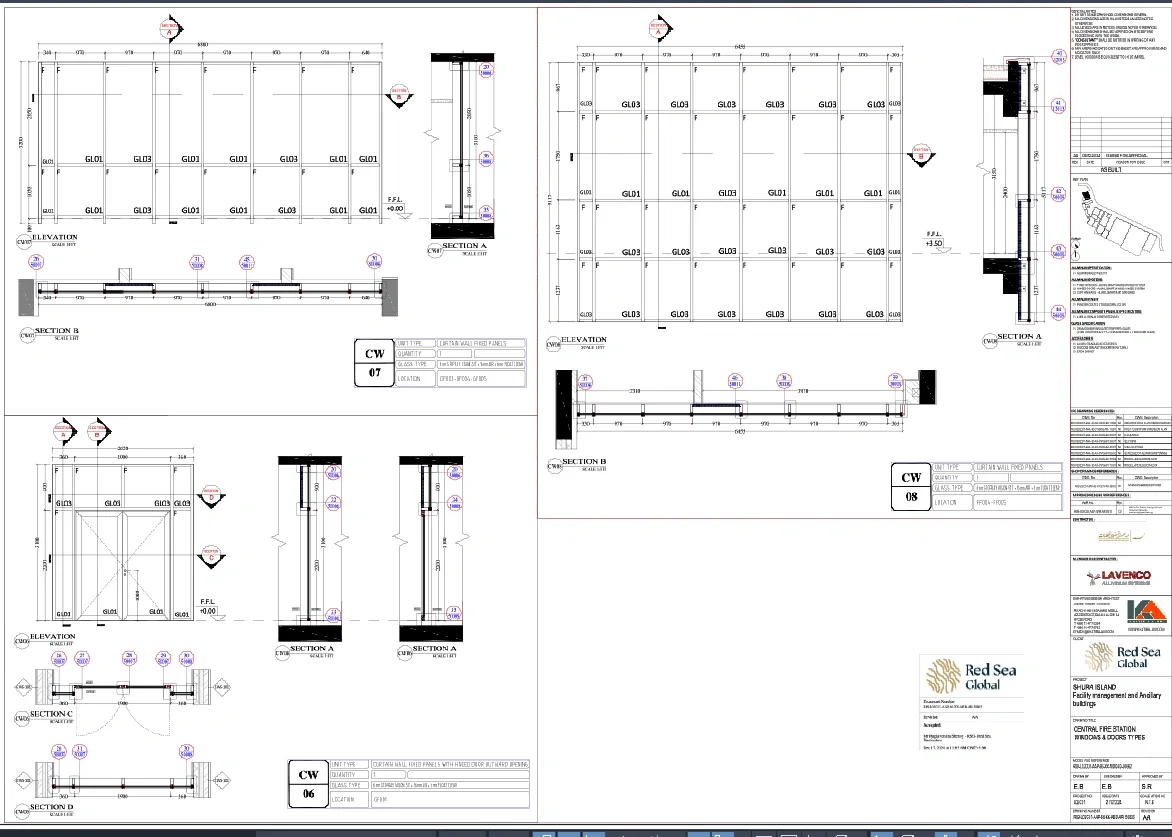

This AutoCAD DWG file shows a built drawing of a window, including detailed elevations, sections, and curtain wall panel layout with precise dimensions and specifications. The drawing includes curtain wall units CW06, CW07, and CW08 with overall widths of 6800 mm and height variations like 3200 mm and 3100 mm. Panel divisions include repeated spacing of 970 mm and intermediate dimensions such as 640 mm, 340 mm, and 360 mm for framing layout. The glazing specification includes 28 mm double-insulated tempered glass with 6 mm stopray glass, 16 mm air gap, and 6 mm clear glass. Section details show inside and outside orientation with frame thickness and fixing details, along with FFL levels at plus 0.00 and plus 3.50 meters. Structural components include aluminum alloy 6063 T6 with powder-coated finish and EPDM gaskets with silicone sealant. The drawing also includes detailed sections A, B, C, and D with connection details, anchorage, and panel fixing systems. Additional details include curtain wall fixed panels, hinged door panels, and alignment with floor and wall structure. This built drawing of the window CAD file is useful for architects and engineers for facade detailing and execution.
