Food Forum Food Court Layout 1587sqft Seating Plan DWG Design

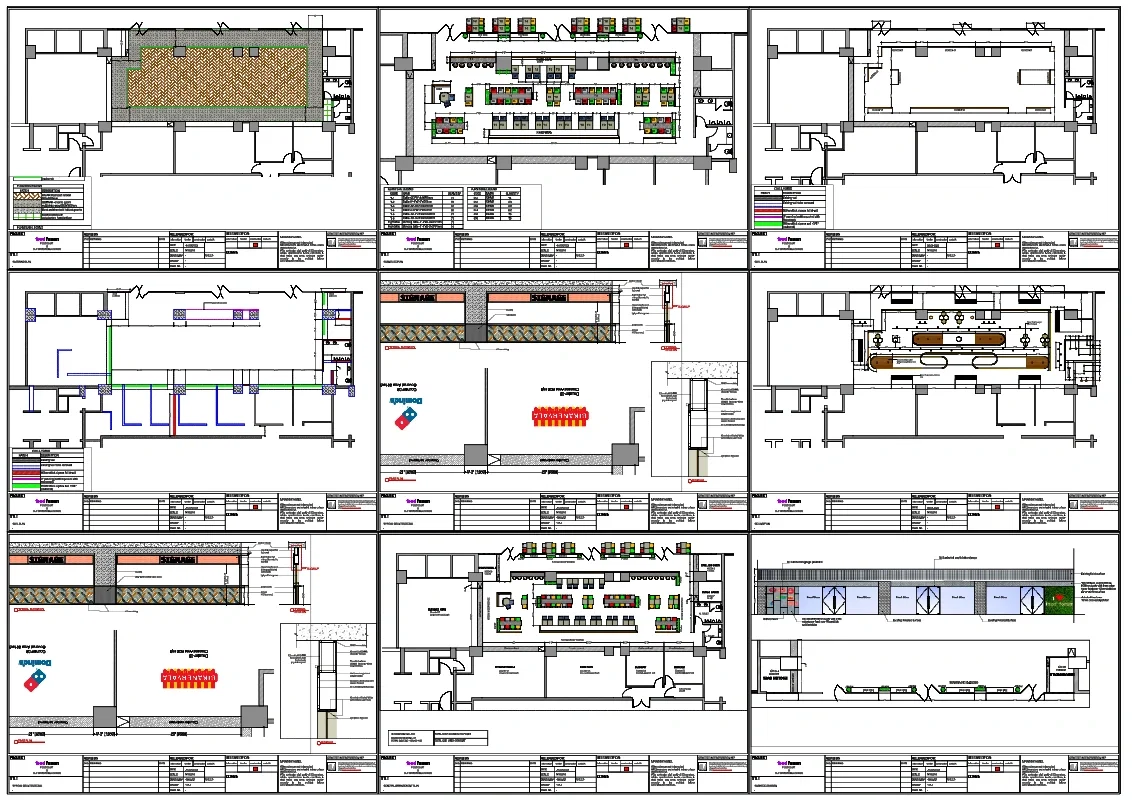

This AutoCAD DWG file presents a detailed Food Forum Food Court layout, including general arrangement, civil flooring, furniture, ceiling, and facade drawings with precise dimensions and specifications. The plan shows a total seating area of 1587 sqft with an indoor seating capacity of 108 and an outdoor seating capacity of 28, totaling 136 covers. Food counters include multiple units such as Counter 01 with 835 sqft, Counter 02 with 608 sqft, Counter 03 with 601 sqft, Counter 04 with 211 sqft, and Counter 05 with 207 sqft, along with kiosks of 90 sqft and 110 sqft. Circulation spaces include 1350 mm, 1500 mm, and 1575 mm wide passages, ensuring efficient movement. The drawing includes a detailed furniture layout with table sizes such as 12 feet, 18 feet, and 8 feet, along with chair distribution and high table seating. Flooring details include 800x1200 mm parquet tiles, 800x1600 mm tiles, and granite bands. The ceiling plan shows HDHMR panels, light profiles, and decorative elements. Elevation and facade details include fixed glass panels, signage walls, 3D illuminated signage, and partition systems. This Food Forum Food Court CAD drawing is ideal for architects and designers for commercial space planning and execution.
