Hotel And Banquet 2 Storey Commercial Building DWG Plan Detail

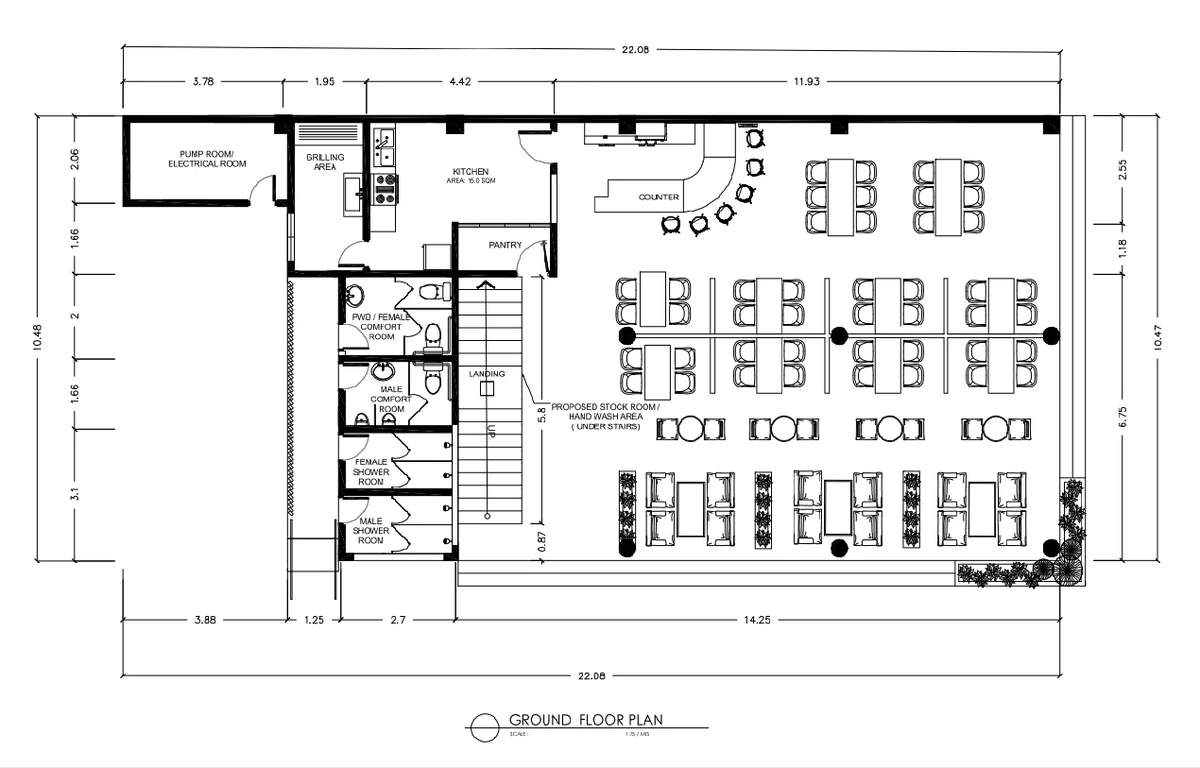

A detailed HOTEL AND BANQUET 2 STOREY COMMERCIAL BUILDING DWG Plan Detail presenting complete architectural layouts for a proposed two-storey commercial building designed for hotel dining and banquet functions. The ground floor plan shows an overall building length of approximately 22.08 meters and a width of around 10.47 meters with organized spaces including dining seating layout, counter service area, kitchen area of about 15.0 square meters, pantry, grilling area, pump room, and electrical room. Service areas include male and female comfort rooms, shower rooms, and hand-wash zones connected through a central staircase and landing. The second floor plan features function room A with an area of approximately 82.75 square meters and function room B of approximately 25.5 square meters, separated by a foldable partition along with toilet and hand-wash facilities. Structural layouts include column grid spacing such as 4.05 meters and 5 meters, with overall column layout length around 19.69 meters, ensuring proper load distribution. This HOTEL AND BANQUET 2-STOREY COMMERCIAL BUILDING DWG Plan Detail provides accurate dimensions, zoning, and construction-ready information for architects and engineers.
