Underground Sump Detail Proposed Residences Building DWG Plan

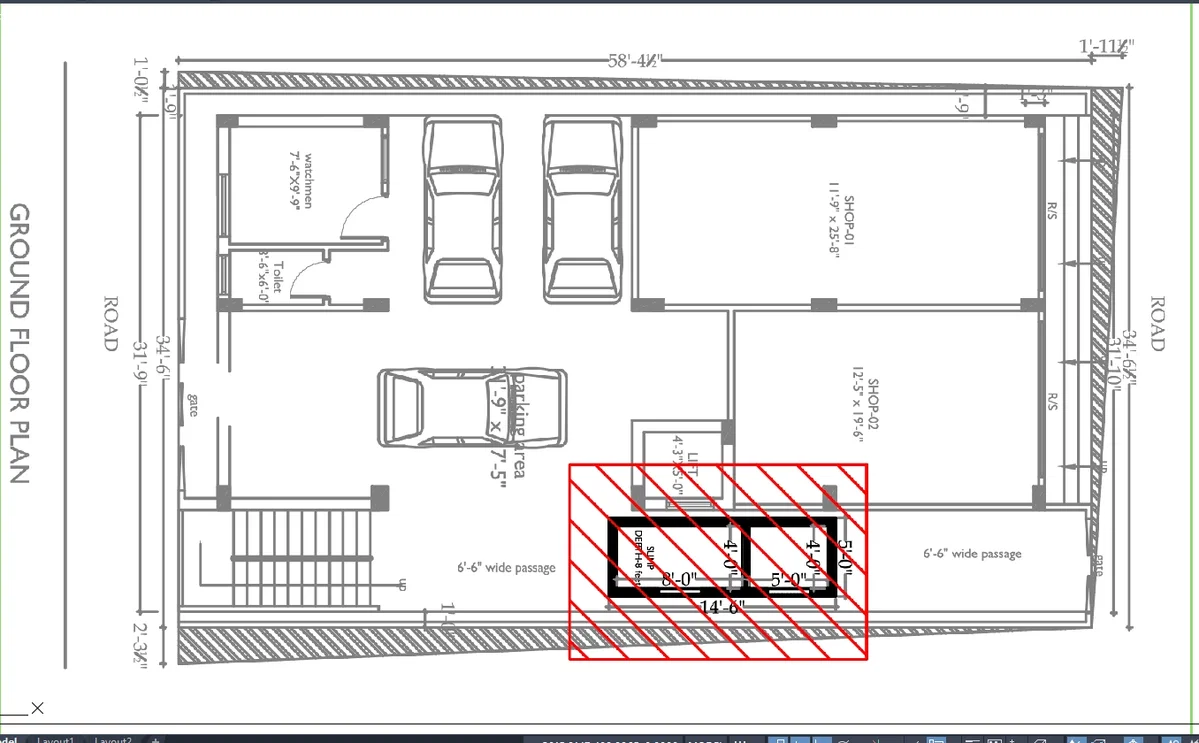

A detailed UNDER GROUND SUMP DETAIL PROPOSED RESIDENCES BUILDING DWG Plan presenting complete structural and architectural drawings for sump construction with accurate dimensions and reinforcement detailing. The drawing includes a sump plan with overall dimensions of approximately 14 feet 6 inches in length and 13 feet 6 inches in depth, along with internal width variations of 4 feet and 5 feet compartments. As shown in the drawing sheet, section A A and section B B illustrate vertical construction up to 8 feet depth or plinth beam level with 8-inch thick sump bottom slab and PCC layer of 1 ratio 4 ratio 8 with 3-inch base. Reinforcement details include 10 mm bars spaced at 6-inch, 9-inch, 10-inch, and 12 inch center to center for top and bottom slabs, ensuring structural strength. The drawing also highlights the sump top slab, manhole openings of 1 feet 6 inches, and detailed reinforcement distribution for walls and slabs. Ground floor integration shows a parking area of approximately 31 feet 9 inches by 27 feet 5 inches, shop spaces, a lift size of 4 feet 3 inches by 5 feet, and a 6 feet 6 inches wide passage with sump placement coordination. This UNDER GROUND SUMP DETAIL PROPOSED RESIDENCES BUILDING DWG Plan provides precise construction-ready information for engineers and designers.
