Ground Floor And First Floor House Layout DWG With Foundation

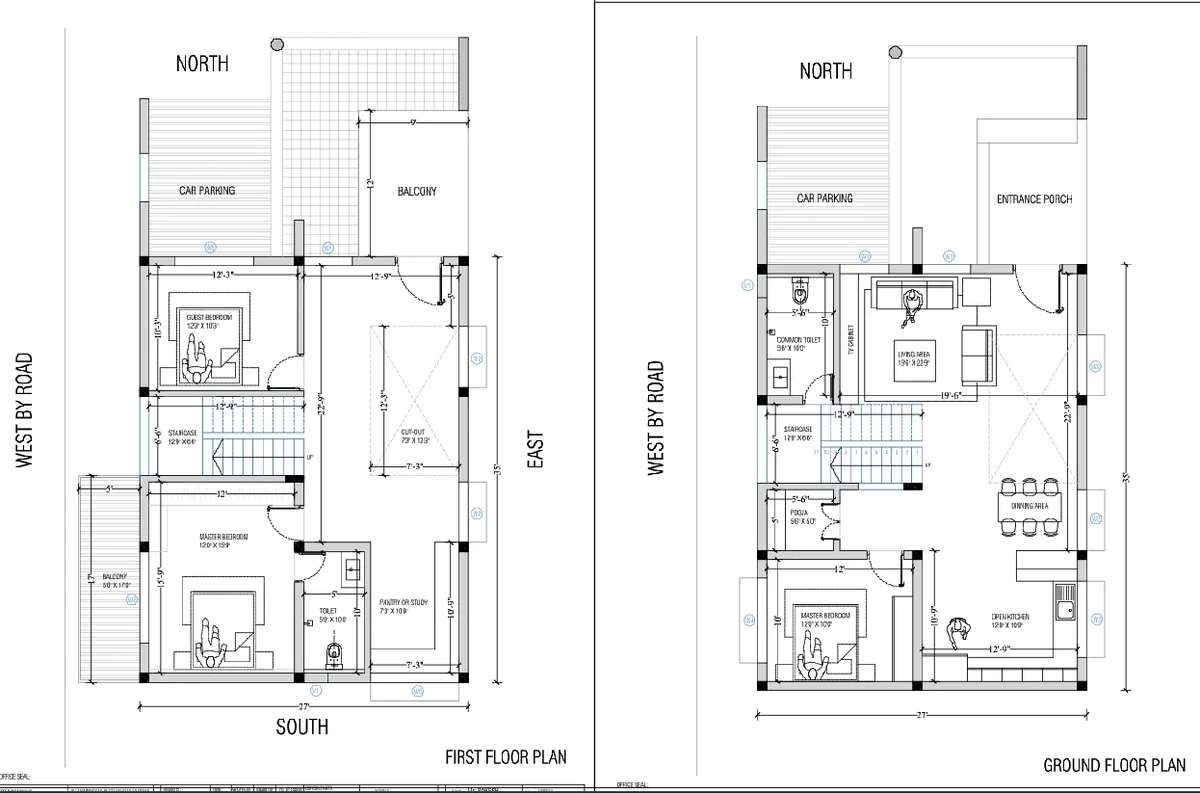

A detailed Ground Floor and First Floor House Layout DWG with Foundation, presenting complete residential planning with precise architectural and structural details. The ground floor layout includes a spacious living area measuring 19 feet 6 inch by 22 feet 9 inch, open kitchen 12 feet 9 inch by 10 feet 9 inch, master bedroom 12 feet by 10 feet, dining area, pooja room 5 feet 6 inch by 5 feet, common toilet 5 feet 6 inch by 10 feet, staircase 12 feet 9 inch by 6 feet 6 inch, entrance porch, and dedicated car parking space. The first floor plan consists of a master bedroom sized 12 feet by 15 feet 9 inch, guest bedroom 12 feet 3 inch by 10 feet 3 inch, balcony 5 feet by 17 feet, pantry or study room 7 feet 3 inch by 10 feet 9 inch, toilet 5 feet by 10 feet, and a central cut out area 7 feet 3 inch by 12 feet 3 inch ensuring ventilation and light flow. The drawing also includes centerline planning and foundation details with column sizes of 9 inches by 9 inches and 6 inches by 1 feet 6 inches, footing sizes of 4 feet by 4 feet by 4 feet 6 inches and 5 feet by 5 feet by 5 feet, reinforcement specification using 10 mm bars at 5 inches center to center, and M20 grade concrete. This Ground Floor and First Floor House Layout DWG with Foundation provides complete construction-ready information for architects and engineers.
