Boundary Wall Design DWG South Side BBQ Area With 3000 Spacing

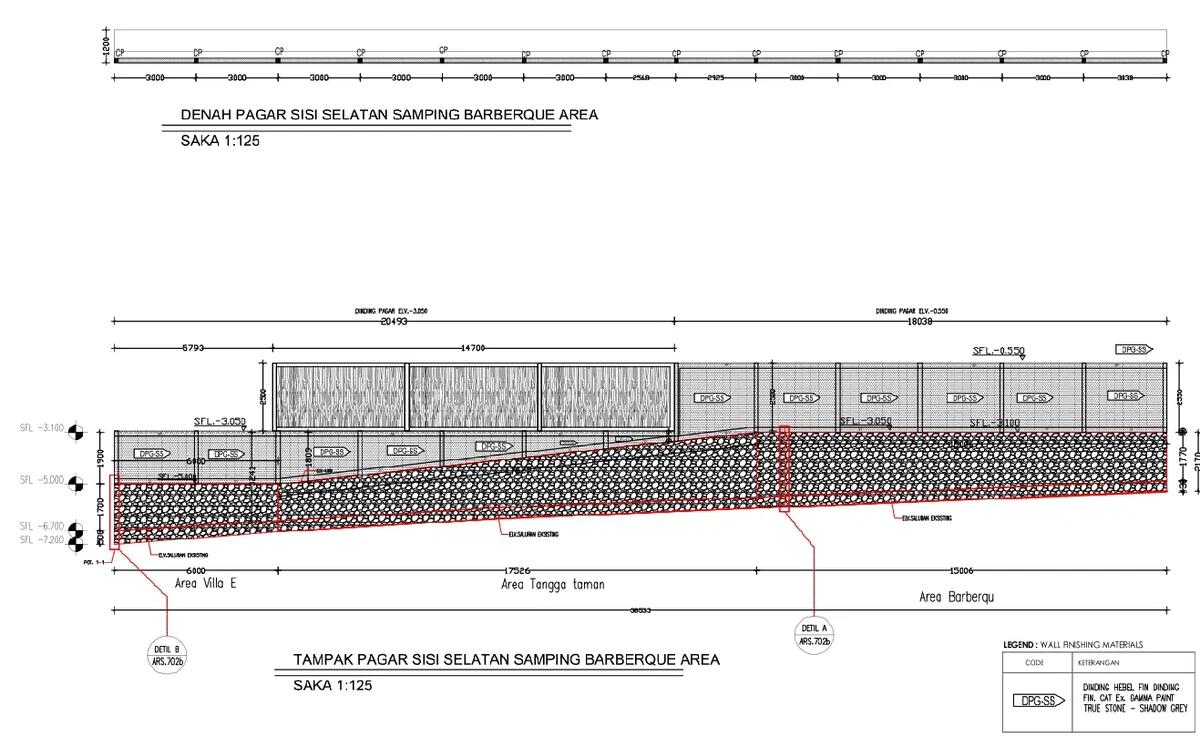

This Boundary Wall Design DWG South Side BBQ Area With 3000 Spacing presents a detailed architectural drawing of a south side boundary wall located beside a barbecue area, including both plan and elevation at scale 1:125. The layout shows a continuous wall alignment with repeated column spacing of 3000 mm along the full length, integrated with CP and S1 structural markers. The elevation highlights varying levels such as SFL minus 3.100, minus 5.000, minus 6.700, and minus 7.200, indicating slope and terrain adjustments across the site. The total segmented lengths include approximately 5793 mm for Area Villa E, 17526 mm for Area Tangga Taman, and 15006 mm for Area Barbeque. The wall construction includes a stone base filling, a stepped foundation, and panel divisions with DPG SS wall finishing material as noted in the legend. The drawing also illustrates existing ground conditions, retaining structure, and sectional references for detailed execution. This Boundary Wall Design DWG South Side BBQ Area With 3000 Spacing is suitable for accurate site boundary planning and construction detailing.
