Residential Electrical Layout Plan DWG Drawing Size 8600x8570 mm

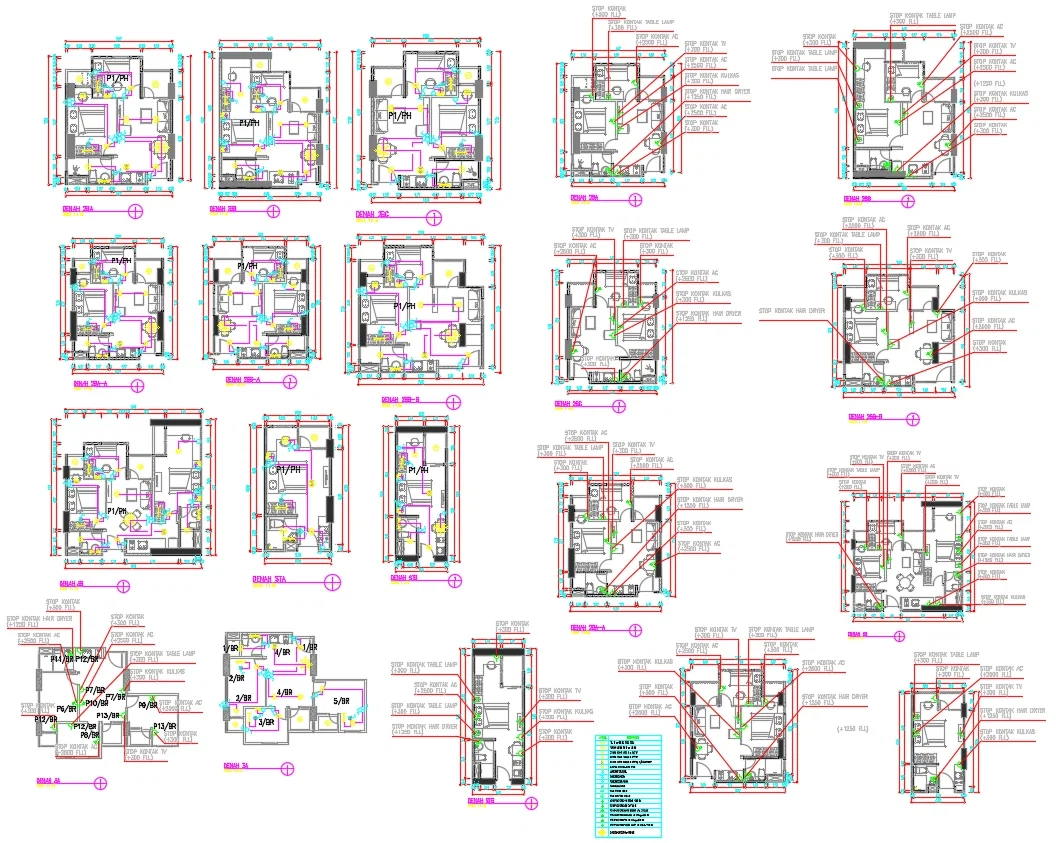

This Residential Electrical Layout Plan DWG Drawing Size 8600x8570 mm includes multiple AutoCAD floor plans, such as 2BHK and 3BHK configurations with complete electrical detailing. The drawing shows precise room layouts with dimensions like 8600 mm by 8570 mm and 5970 mm by 7100 mm, including bedrooms, living areas, kitchen, and toilets. Electrical points are clearly marked with wiring routes, switchboards, lighting fixtures, and socket placements such as stop kontak TV at 300 mm FLL, AC points at 2500 mm FLL, table lamp sockets at 300 mm FLL, and hair dryer points at 1250 mm FLL. The layout also includes lighting symbols, ceiling fixtures, and circuit connections for efficient electrical planning. Each plan is drawn with accurate wall thickness, door openings, and furniture layout to support real installation conditions. This Residential Electrical Layout Plan DWG Drawing Size 8600x8570 mm is ideal for architects, engineers, and designers for precise electrical drafting, planning, and AutoCAD documentation of residential units.
