3D Metal Roof Sheet Connection DWG Structural Detail Model Plan

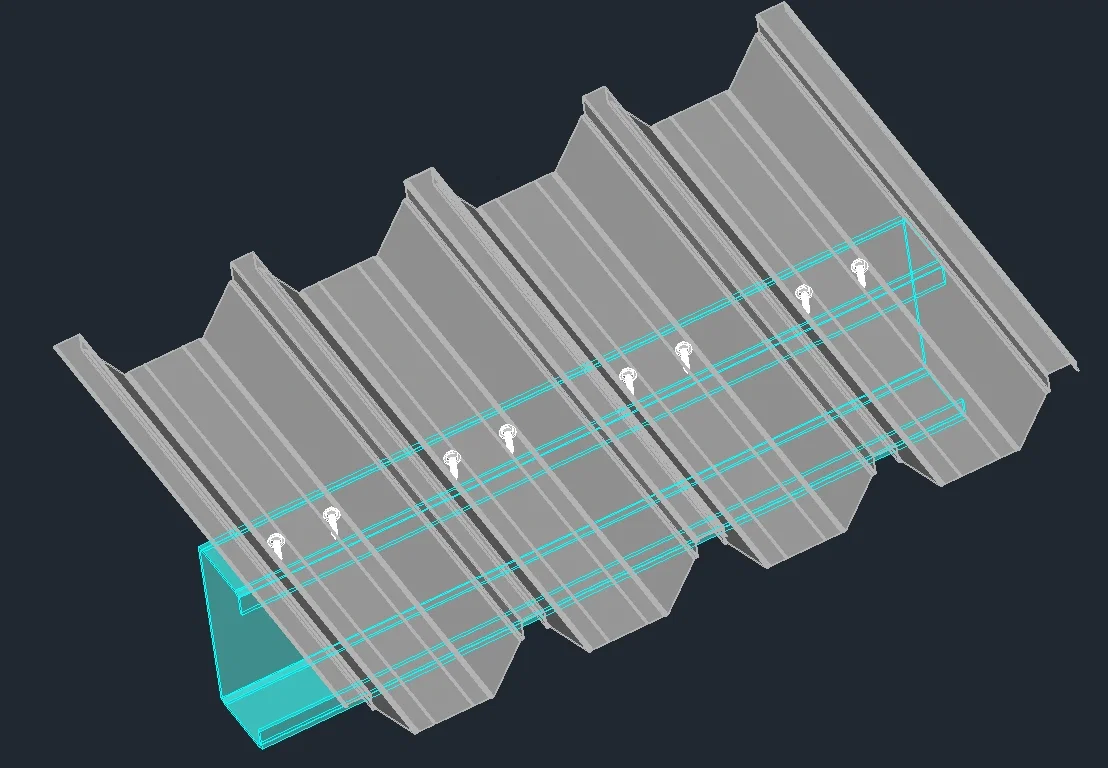

This AutoCAD DWG file presents a 3D metal roof sheet connection structural model plan with corrugated roofing profile, steel support channel arrangement, bolt fixing positions, and structural connection detailing. The drawing includes 3D roofing assembly visualization, roof sheet fastening layouts, steel framing support details, connection alignment references, and fabrication annotations required for industrial and structural roofing projects. This DWG drawing is useful for civil engineers, structural engineers, fabrication consultants, AutoCAD users, 3D Max users, Revit professionals, and construction designers working on metal roofing systems and structural connection modeling projects.
