AutoCAD DWG Wall Panel Sheet 5030mm Inner Wall Plate Drawing 3518mm
Frequently Asked Questions
The drawing includes a 5030 mm bottom plate, 3000 mm wall plate, and 3518 mm internal wall panel with complete fabrication dimensions and sectional details.
E-E-A-T & Quality Verification
📝 AI Overview (TL;DR)
This AutoCAD DWG drawing includes detailed fabrication layouts for industrial wall panel components featuring a 5030 mm bottom plate, 3000 mm wall section, and 3518 mm internal panels. The file provides precise dimensions, hole spacing, bend details, sectional views, and manufacturing information for accurate fabrication and installation.
💡 First-hand Experience
This drawing has been carefully reviewed for dimensional consistency, fabrication details, and manufacturing usability. The file clearly defines panel sizes, hole locations, bend angles, flange dimensions, sheet thicknesses, and sectional views, making it suitable for fabrication workflows, construction documentation, engineering coordination, and production planning.
Ratings & Reviews
Be the first to share your experience with this product. Your review helps others make better decisions!
Description

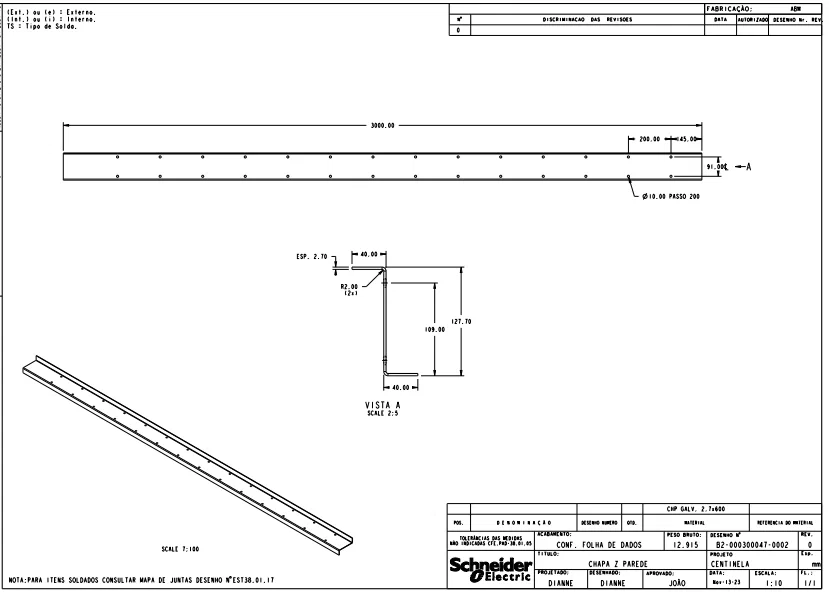

This AutoCAD DWG file includes detailed fabrication drawings of wall panel components designed for industrial enclosure and sheet metal applications. The drawing set contains a 5030 mm bottom plate, a 3000 mm wall plate with Ø10 mm holes at 200 mm spacing, and 3518 mm internal wall panels in two standard configurations. Manufacturing details include 600 mm plate width, 1.50 mm and 2.70 mm sheet thickness, 40 mm flange bends, 127.70 mm profile height, 18 mm edge bend, 5-degree formed angle, R2 bend radius, and dimensional references for accurate fabrication and assembly. Multiple orthographic, sectional, and isometric views are provided to support production, installation, quality inspection, and project documentation. This AutoCAD DWG drawing is suitable for architects, civil engineers, structural engineers, fabrication professionals, industrial designers, contractors, BIM coordinators, and construction planning teams requiring precise wall panel fabrication details for engineering and manufacturing projects.
