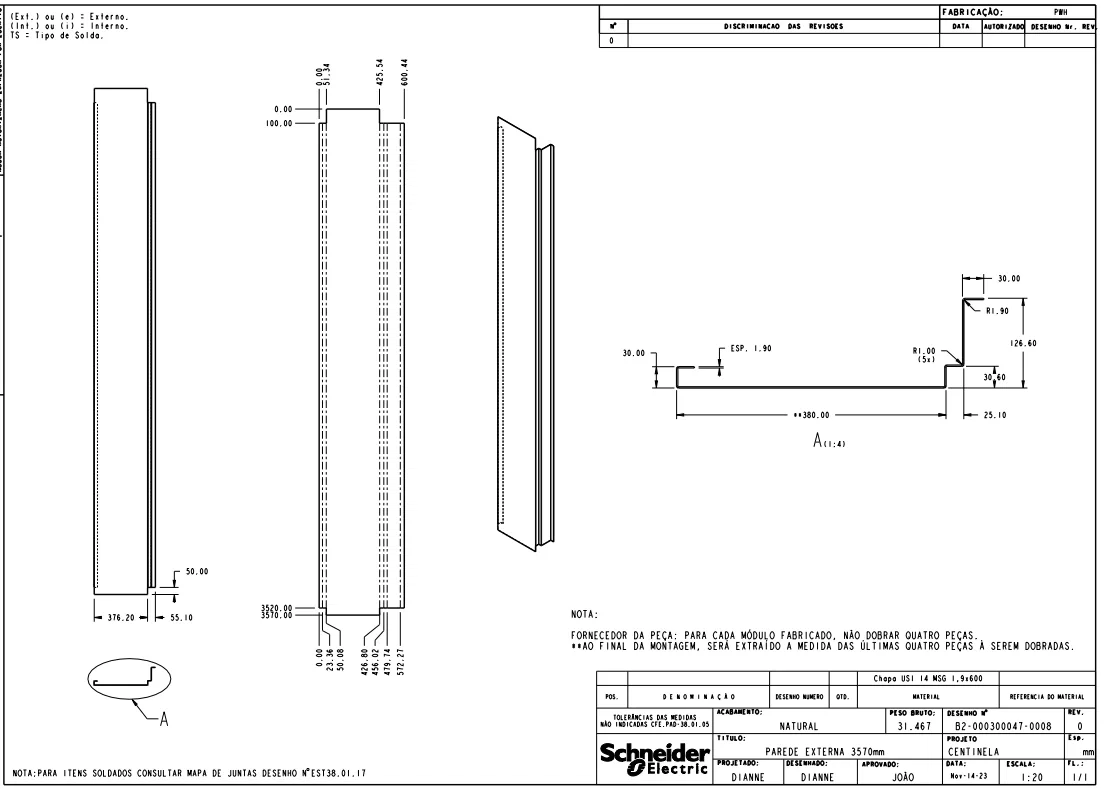

AutoCAD DWG External Internal Wall Panel 3570mm Fabrication Drawing
Frequently Asked Questions
The fabrication details include 1.50 mm and 1.90 mm sheet thicknesses with bend radii and flange dimensions.
E-E-A-T & Quality Verification
📝 AI Overview (TL;DR)
This AutoCAD DWG drawing package includes fabrication drawings for internal and external wall panels with 3518 mm, 3520 mm, and 3570 mm heights. It contains front, side, sectional, profile, and isometric views with 1.50 mm and 1.90 mm sheet thicknesses, bend radii, flange dimensions, profile measurements, and complete manufacturing details.
💡 First-hand Experience
This drawing package has been carefully reviewed to verify fabrication dimensions, panel profiles, bend geometry, and manufacturing details. The drawings clearly define wall panel heights, flange sizes, bend radii, sheet thicknesses, sectional profiles, and reference dimensions. The included views support accurate fabrication, production planning, quality inspection, installation, and engineering documentation for industrial sheet metal wall panel assemblies.
Ratings & Reviews
Be the first to share your experience with this product. Your review helps others make better decisions!
Description
This AutoCAD DWG drawing package contains comprehensive fabrication details for internal and external wall panels used in industrial sheet metal assemblies. The set includes multiple panel configurations with 3518 mm, 3520 mm, and 3570 mm heights, profile widths of 190.70 mm, 380.00 mm, and 115.00 mm, 1.50 mm and 1.90 mm sheet thicknesses, 30 mm and 50 mm flange dimensions, R1.00, R1.90, and R2.00 bend radii, 126.60 mm profile height, 192.60 mm profile length, 18 mm formed edge, and 5° bend angle. The drawings provide front elevations, side views, sectional details, profile sections, and isometric views with complete manufacturing dimensions for accurate fabrication, assembly, installation, inspection, and engineering documentation. This AutoCAD DWG file is suitable for architects, civil engineers, structural engineers, fabrication professionals, contractors, BIM modelers, and industrial design teams requiring precise wall panel fabrication drawings.
Tags
Uploaded by:
john
kelly
