AutoCAD DWG External Internal Wall Panel Recorte Fabrication Drawing
Frequently Asked Questions
The drawing package includes external wall recorte panels, internal wall recorte panels, and wall sections measuring 3570 mm, 3518 mm, 809 mm, and 735 mm with complete fabrication dimensions.
E-E-A-T & Quality Verification
📝 AI Overview (TL;DR)
This AutoCAD DWG drawing package includes fabrication drawings for external and internal wall panel recorte components with 3570 mm, 3518 mm, 809 mm, and 735 mm panel sizes. It provides sectional views, profile details, 1.50 mm and 1.90 mm sheet thicknesses, bend radii, flange dimensions, and complete manufacturing dimensions.
💡 First-hand Experience
This drawing package has been reviewed to verify fabrication dimensions, profile geometry, bend details, and manufacturing accuracy. The drawings clearly define wall panel recorte profiles, flange sizes, sheet thicknesses, sectional configurations, and reference dimensions. The combination of elevation, profile, section, and isometric views supports reliable fabrication, quality inspection, installation planning, and engineering documentation.
Ratings & Reviews
Be the first to share your experience with this product. Your review helps others make better decisions!
Description

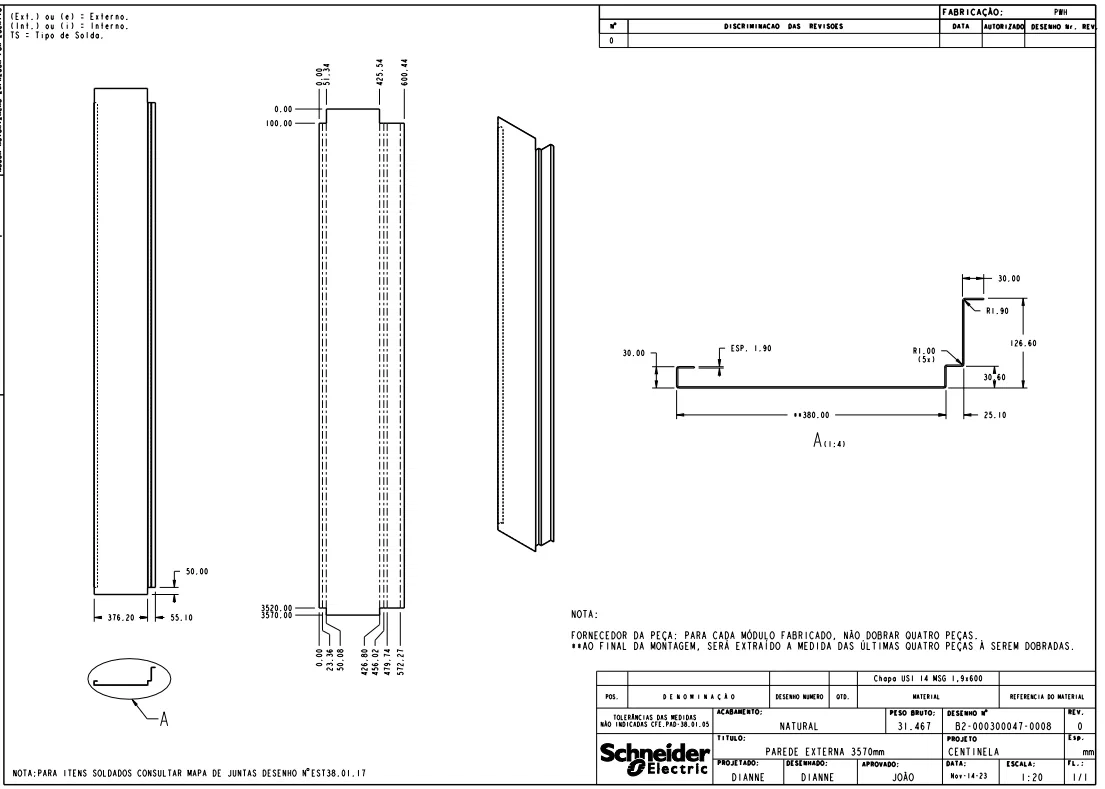

This AutoCAD DWG drawing package presents detailed fabrication drawings for external and internal wall panel recorte components used in industrial sheet metal assemblies. The file includes 3570 mm external wall recorte panels, 3518 mm internal wall recorte panels, 809 mm and 735 mm wall sections, and complete profile configurations. The drawings specify 1.50 mm and 1.90 mm sheet thicknesses, 380 mm profile width, 192 mm and 206.10 mm recess dimensions, 183.10 mm, 169.10 mm, 374.20 mm, and 376.20 mm reference widths, 30 mm and 50 mm flange dimensions, R1.00, R1.90, and R2.00 bend radii, 126.60 mm profile height, 18 mm formed edge, and 5° bend angle. Multiple front elevations, profile views, sectional details, and isometric views provide complete dimensional information for fabrication, production, installation, inspection, and engineering documentation. This AutoCAD DWG file is suitable for architects, civil engineers, structural engineers, fabrication professionals, contractors, BIM specialists, and industrial design teams requiring accurate wall panel fabrication drawings.
Tags
Uploaded by:
Wang
Fang
