495x600 Duct Assembly Fabrication with Support and Cover Details
Frequently Asked Questions
The drawing includes the 495x600 duct assembly, aluminum cover, support members, face angles, sectional views, fabrication details, and complete dimensions.
E-E-A-T & Quality Verification
📝 AI Overview (TL;DR)
Complete 495x600 duct assembly CAD drawing with 495x600 duct body, 658x553 aluminum cover, 600mm and 495mm face angles, 702mm and 597mm duct supports, bent sheet metal parts, fabrication dimensions, sectional views, corner details, and assembly views for HVAC sheet metal fabrication and manufacturing projects.
💡 First-hand Experience
This CAD drawing package includes all major fabrication components required to manufacture a 495x600 sheet metal duct assembly. The drawings clearly present duct body geometry, aluminum cover plates, face angles, support profiles, sectional views, bend details, material thicknesses, assembly layouts, and precise fabrication dimensions. It is useful for HVAC fabrication workshops, mechanical engineers, AutoCAD professionals, BIM workflows, and construction documentation where accurate manufacturing information is required.
Ratings & Reviews
Be the first to share your experience with this product. Your review helps others make better decisions!
Description

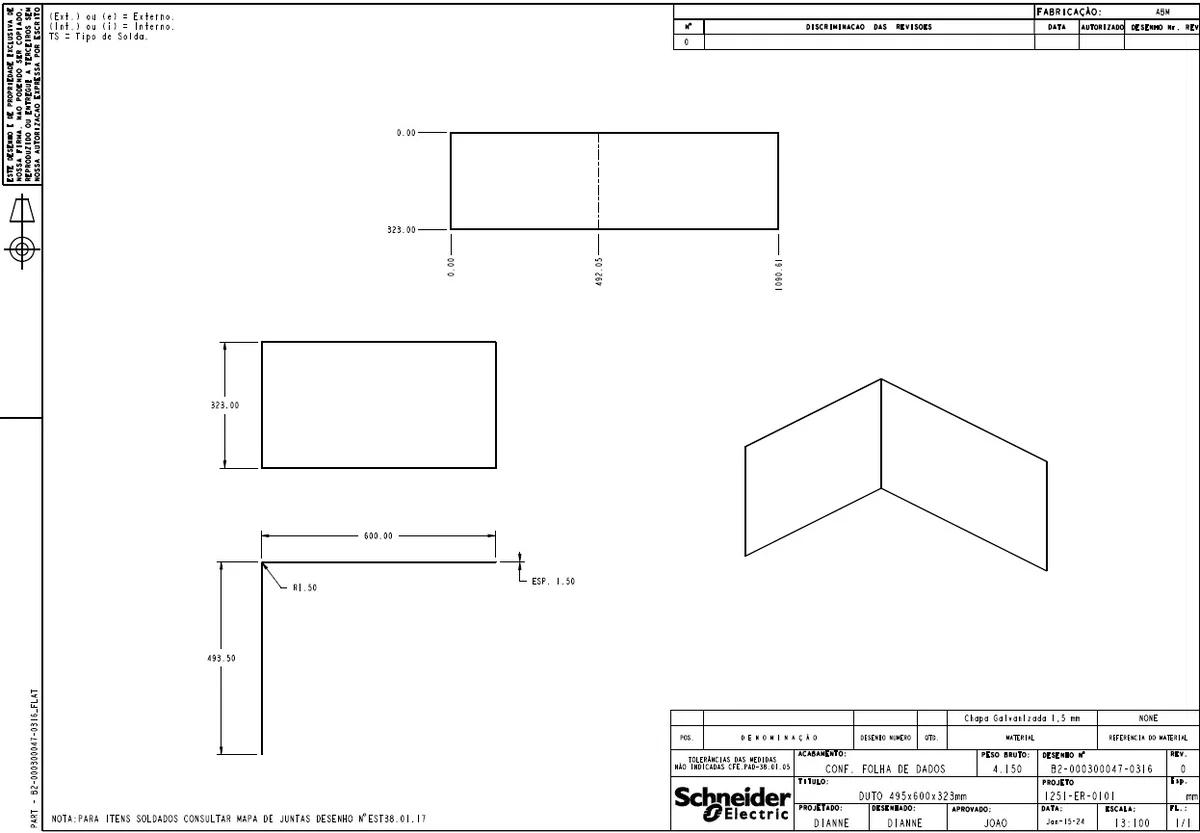

This AutoCAD DWG drawing provides a complete fabrication package for a 495x600 duct assembly, including the main duct body measuring 495x600x323mm, an aluminum cover plate sized 658x553mm, 600mm and 495mm face angles, 702mm and 597mm support components, bent sheet metal profiles, sectional views, assembly layouts, and fabrication dimensions. The drawing also includes material thickness information, corner details, support geometry, manufacturing references, and clear dimension annotations for accurate production.
Designed for HVAC fabrication, mechanical engineering, industrial duct manufacturing, and construction documentation, this drawing helps engineers and fabricators prepare precise shop drawings with accurate assembly references. The file is suitable for AutoCAD, Revit, 3ds Max, and other CAD workflows requiring fabrication-ready duct details with support members, aluminum cover components, sheet metal bends, dimensions, and installation references for professional manufacturing projects.
