Air Conditioner Support Frame AutoCAD DWG Drawing With 1100 mm Size
Frequently Asked Questions
The drawing includes major dimensions such as 1100 mm frame width, 1016 mm overall height, 973 mm depth, 889 mm clear opening, 1000 mm horizontal member, 850 mm angular member, 575 mm support member, and 693.39 mm inclined brace.
E-E-A-T & Quality Verification
📝 AI Overview (TL;DR)
This Air Conditioner Support Frame AutoCAD DWG Drawing includes a complete welded steel frame assembly with 1100 mm overall width, 1016 mm height, 1000 mm horizontal member, 850 mm angle section, 693.39 mm brace, ASTM A36 steel profiles, fabrication details, sectional views, and assembly drawings for HVAC support applications.
💡 First-hand Experience
Our CAD review verified that the drawing contains clearly organized fabrication views, welded assembly details, angle profiles, hole locations, sectional references, and precise dimensions for every component. The complete layout supports accurate fabrication, installation planning, quality inspection, and efficient interpretation for structural steel and HVAC support projects.
Ratings & Reviews
Be the first to share your experience with this product. Your review helps others make better decisions!
Description

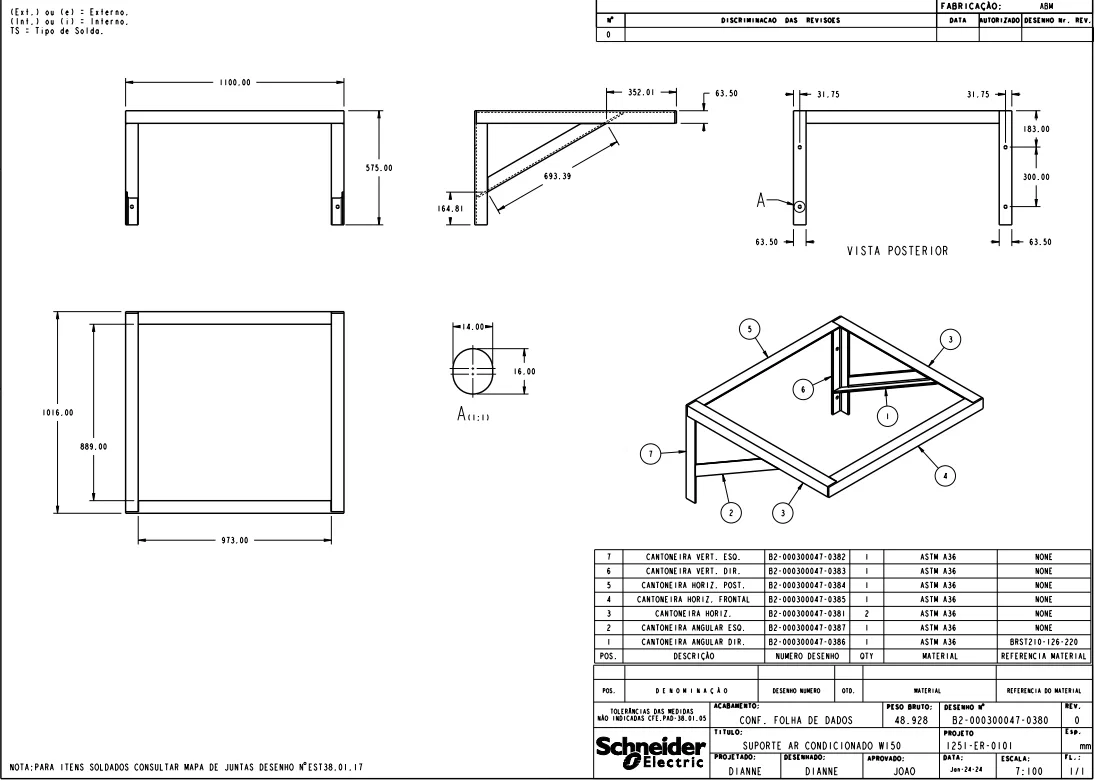

This Air Conditioner Support Frame AutoCAD DWG Drawing provides a complete fabrication and assembly drawing for a welded steel support frame used for air conditioning equipment installation. The drawing package includes a fully assembled support frame, horizontal angle members, vertical left and right angle supports, angular brace, reinforcement members, welded joints, and isometric assembly views with front, side, rear, top, sectional, and detailed component drawings. The design features an overall frame width of 1100 mm, overall height of 1016 mm, clear opening height of 889 mm, frame depth of 973 mm, support height of 575 mm, inclined brace length of 693.39 mm, horizontal extension of 352.01 mm, 164.81 mm vertical support, 300 mm mounting spacing, 183 mm upper fixing distance, 63.50 mm × 63.50 mm × 8.00 mm angle sections, 1000 mm horizontal member, 850 mm angular member with 60° and 30° cuts, 575 mm vertical members, 1100 mm front angle, 16 mm fixing holes, 14 mm hole dimensions, 2 mm center mark, and ASTM A36 steel construction.
