Pavement Construction Detail with Sand Bedding Block Size Plan

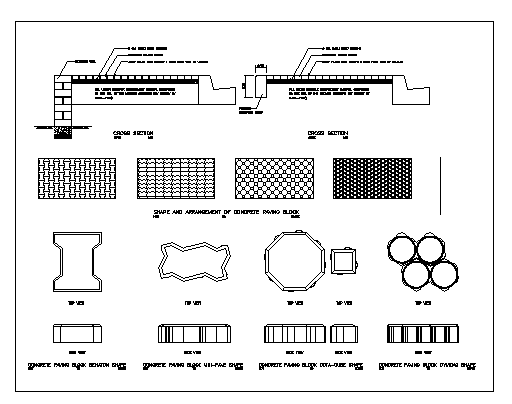

This Pavement Construction Detail CAD drawing provides a comprehensive design with clearly defined sections and accurate measurements for practical implementation. The drawing illustrates detailed pavement layers, including sand bedding, concrete base, and an interlocking block arrangement. It highlights the size and shape variations of paving blocks, including different patterns and configurations used for durable surface construction. The section details also show proper alignment, layer thickness, and base preparation, ensuring long-lasting performance and structural stability in pavement design projects. Additionally, the Pavement Construction Detail CAD file includes joint filling specifications using cement, enhancing strength and surface integrity.
