AutoCAD Complex Design DWG with Detailed Floor and Centerline Plans

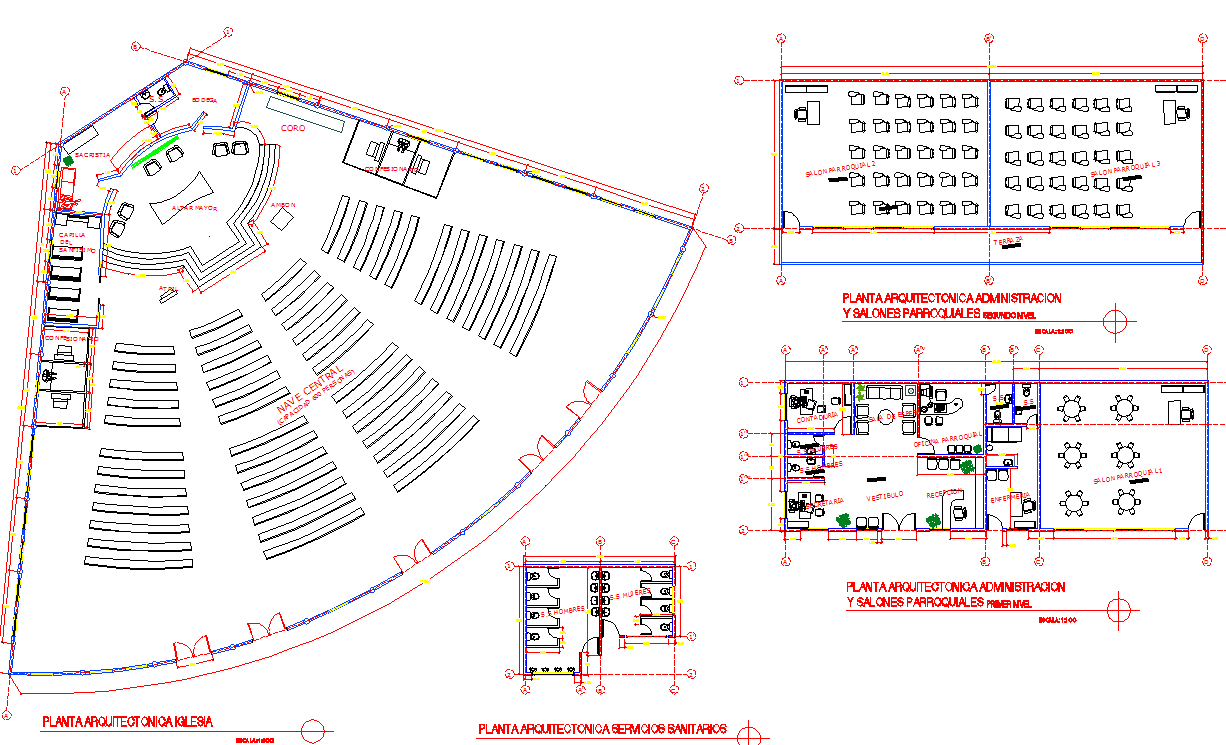

This AutoCAD Complex Design DWG file presents a comprehensive architectural layout featuring floor plans, centerline drawings, and service area details. The design includes separate sections for administrative offices, auditoriums, classrooms, restrooms, and auxiliary facilities, each drawn to scale with precise measurements and labeling. The layout demonstrates efficient spatial planning and connectivity across various functional areas, suitable for institutional or multi-purpose building designs. The file also contains detailed architectural annotations, furniture layouts, and circulation routes, allowing users to understand both design and workflow integration.

Professionals such as architects, civil engineers, and interior designers can use this DWG for planning, drafting, or modifying similar complex structures. The detailed drawing ensures easy customization for educational facilities, community centers, or religious institutions. This file is compatible with AutoCAD, Revit, and other CAD software, enabling smooth editing, rendering, and scaling. With accurate dimensions, defined zoning, and detailed sectional data, this plan serves as a reliable reference for construction documentation or presentation layouts. Ideal for architectural design visualization, the drawing provides a complete understanding of the project’s form, function, and internal organization.
