Kitchen Sink AutoCAD Drawing with Top View Layout and Details

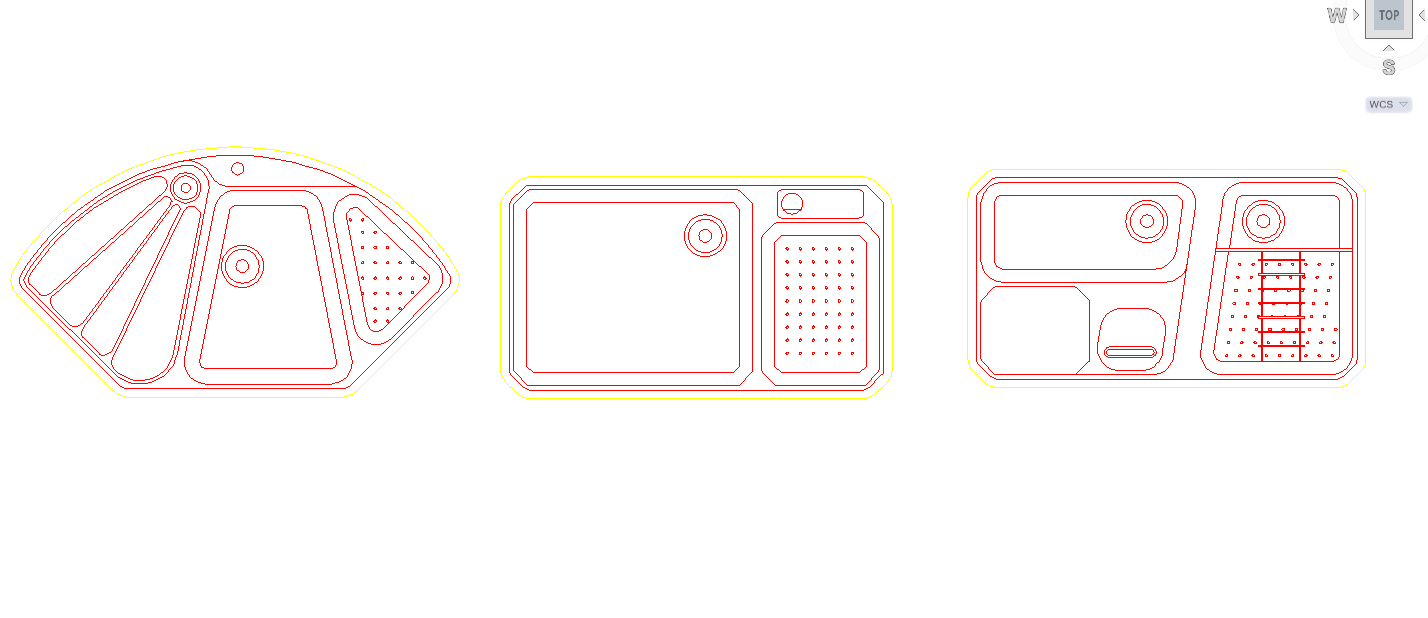

This kitchen sink CAD drawing provides a detailed 2D layout showcasing various sink models with precise measurements and design variations. The drawing features top views of single, double, and corner sinks designed for modular kitchen layouts. Each sink design includes detailing for the basin, drain, and countertop fitting, ensuring accuracy for both residential and commercial kitchen applications.

This DWG file is ideal for architects, interior designers, and engineers involved in kitchen design and plumbing layout planning. The drawing serves as a ready reference for integration into architectural projects or 3D renderings. Its versatility allows easy modification and scaling to fit any kitchen plan. The file helps professionals save design time while maintaining precision in detailing and presentation.
