Details of the installation of fans on the ceiling floor dwg file

Description:

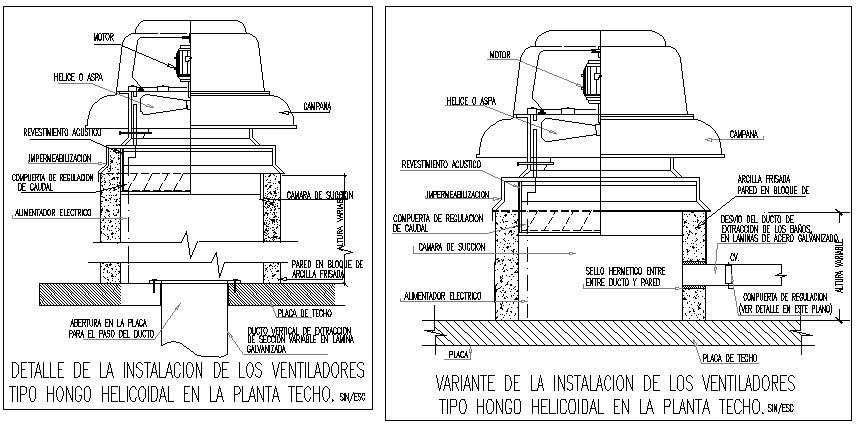

Details of the installation of fans on the ceiling floor dwg file. Details of the installation of fans on the ceiling floor that includes variant of the installation of fans, ceiling floor, electric feeder, suction chamber, flow regulation gate, hermetic seal between duct and wall and much more of electric installation.

Category : Electrical Cad
Sub category : Architecture
File Type : Autocad
File ID : 31136
Type : Gold
Size : 97.87 KB
Publisher
Vaishali
